IMPORTANT:
If you are considering designing and building something similar to this flame effect DO NOT USE THE INFORMATION HERE AS YOUR ONLY SOURCE! Make absolutely no assumptions regarding the materials, individual components, and their applications as shown.

Questions contact:
tom.wilson@thirstybeachlandscaping.com

Propane is corrosive to some materials. Especially some types of rubber which, in the case of an improperly used hose, deteriorate undetected from the inside out. Pressures can become excessive, fire will burn you, things can blow up. This is dangerous, you are responsible for your own safety, do not blame me.

Here are a few resources to begin researching. Understand completely what is required and why:

   • Creating Dangerous Artwork Safely
   • Flame Effects Guidelines
   • Pyro Tribe

  May 12, 2012

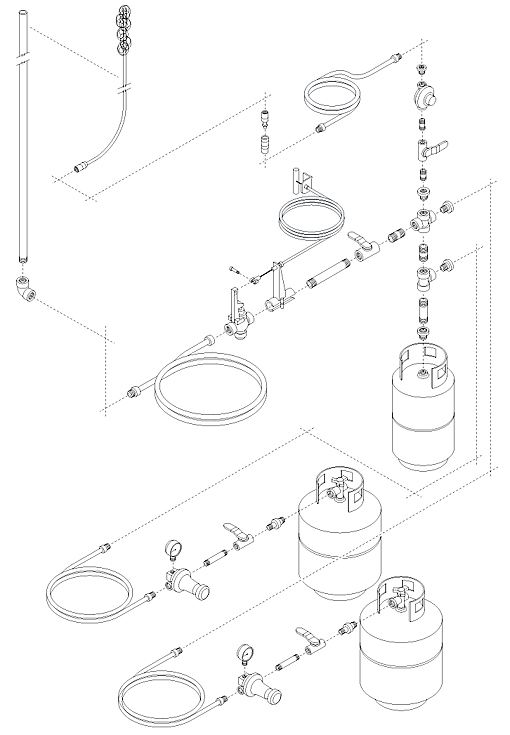

  Assembly Diagram
    This is a later design than shown in the images on this page. Problems developed by
    attaching the barrel directly to the top of the accumulator. Vibration stress caused the
    barrel to crack at the threads. This diagram shows a 1/2" propane rated hose connecting
    the effect valve to the barrel to eliminate vibration stress at the barrel's threads.

Assembly Diagram
May 12, 2012

June 16, 2010

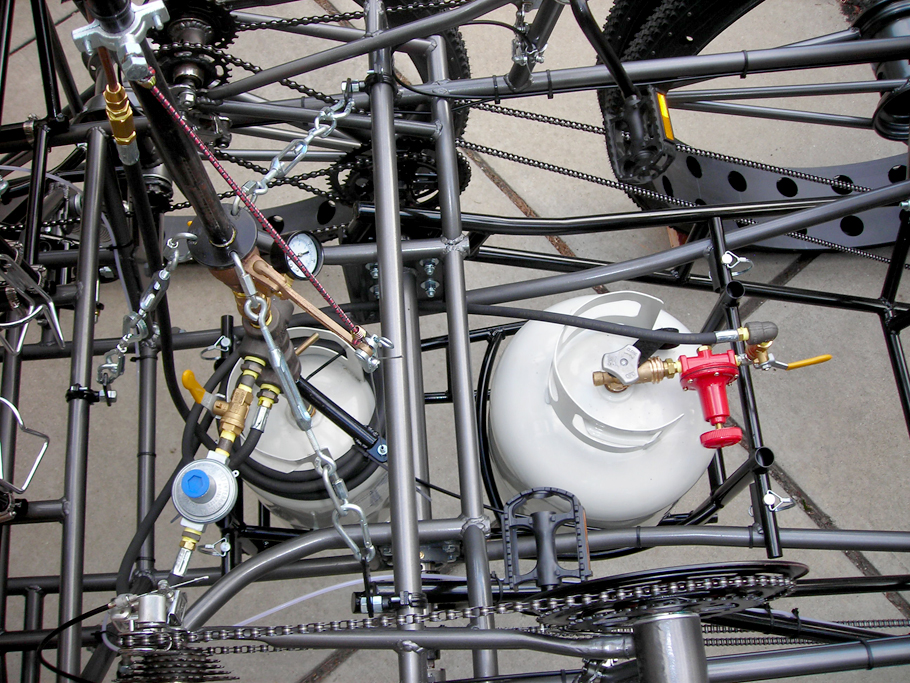

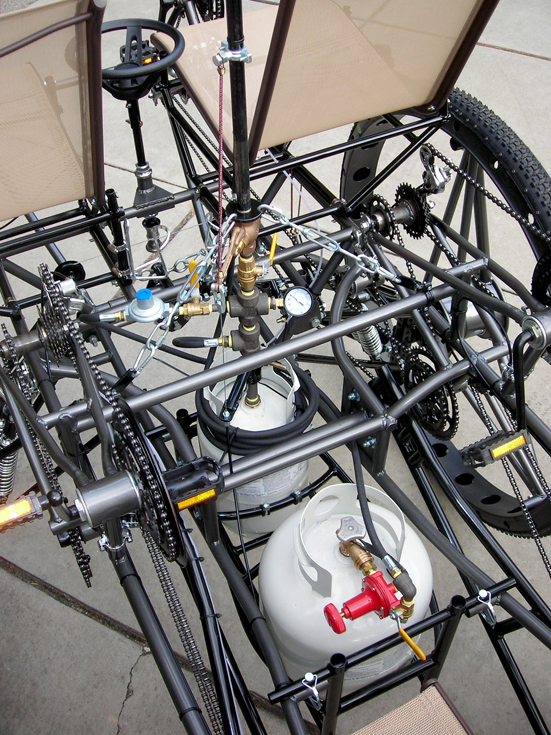

Flame Effect on BigDog

Flame Effect on BigDog

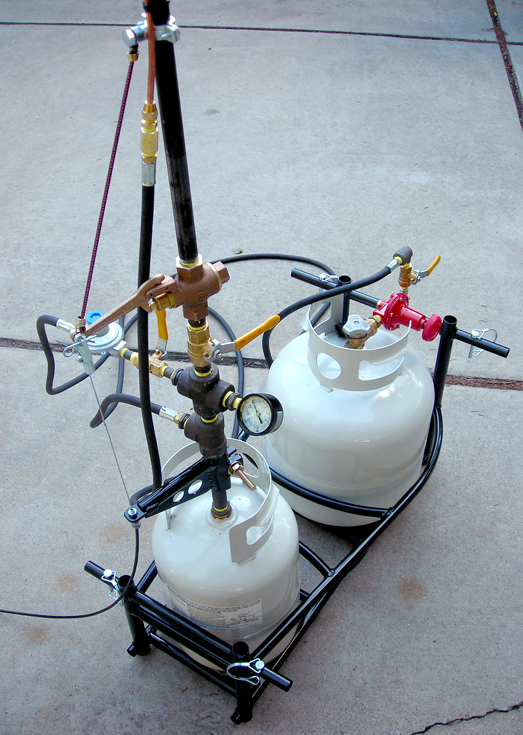

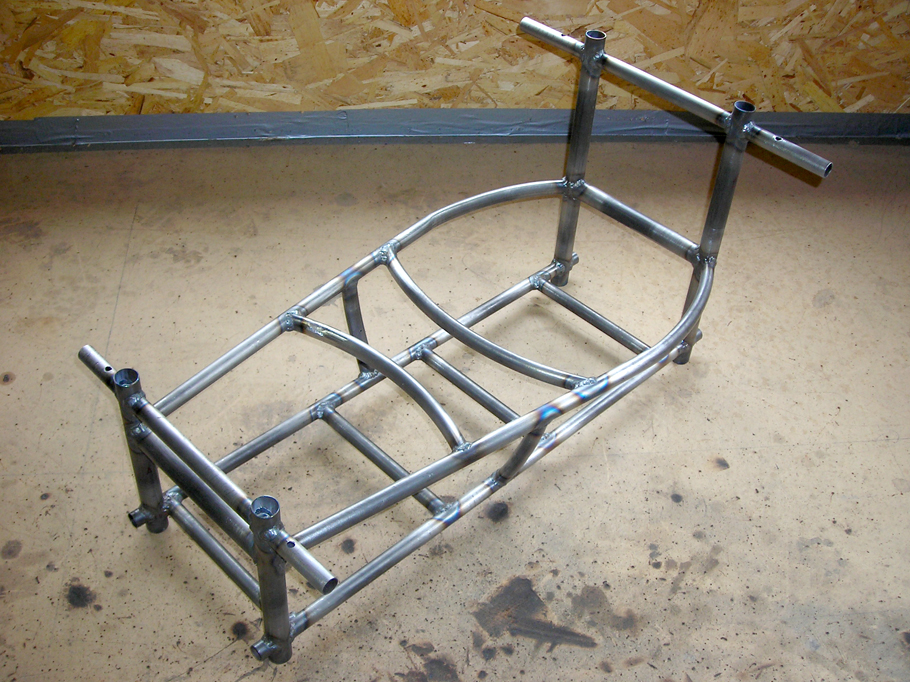

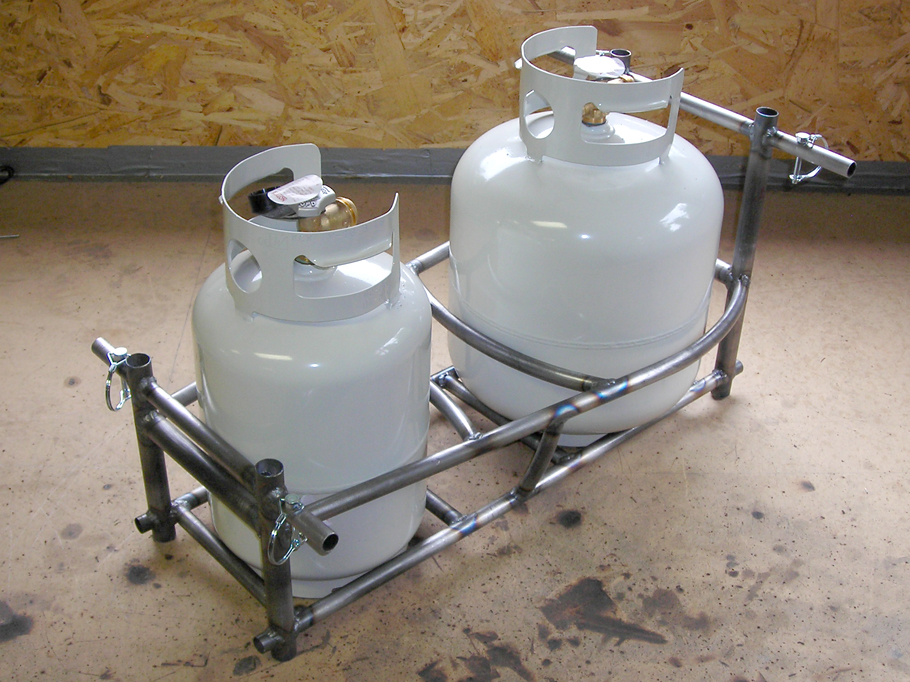

May 8, 2010 Single Supply Tank Carrier	May 8, 2010 Accumulator & Supply Tank in Carrier	June 9, 2010 Finished Single Supply Tank Flame Effect

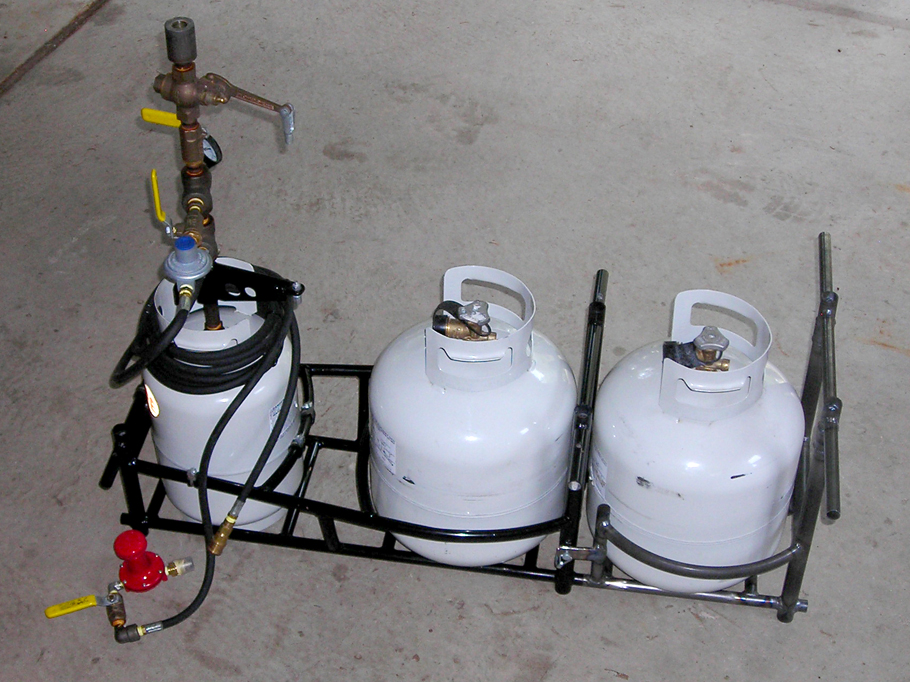

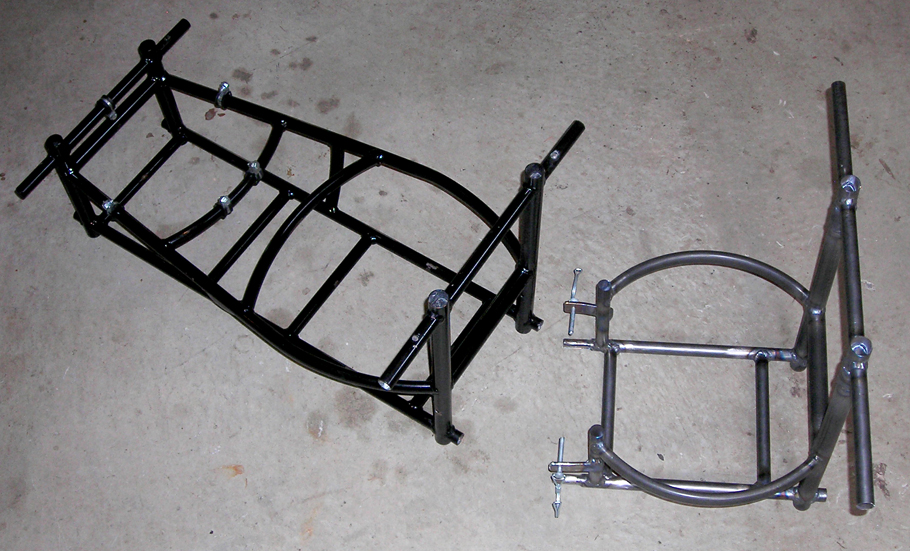

June 16, 2010 Flame Effect on BigDog	July 11, 2011 Twin Supply Tank Carrier Addition	July 11, 2011 Accumulator & Twin Supply Tanks in Carrier Propane boils off and creates pressure within a supply tank by absorbing heat. As the surface of the supply tank cools vapor pressure drops. By adding a second supply tank, and more surface area, vapor pressures can be maintained for a longer period of time.
June 9, 2010 Flame Effect Test 01	June 9, 2010 Flame Effect Test 02
