  Rear Shock Mounts In-Process

Rear Shock Mounts In-Process
February 8, 2010

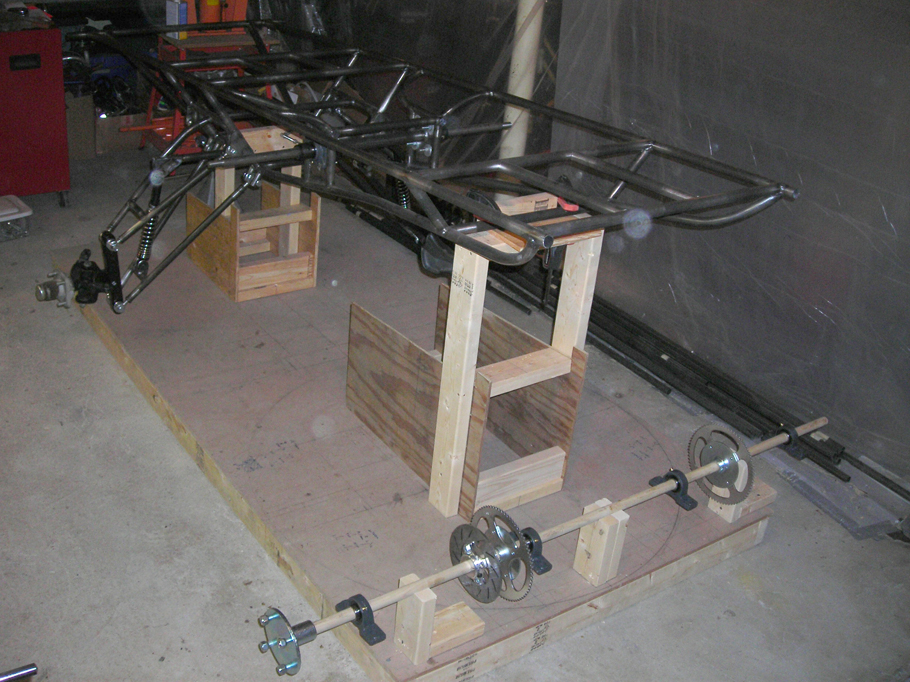

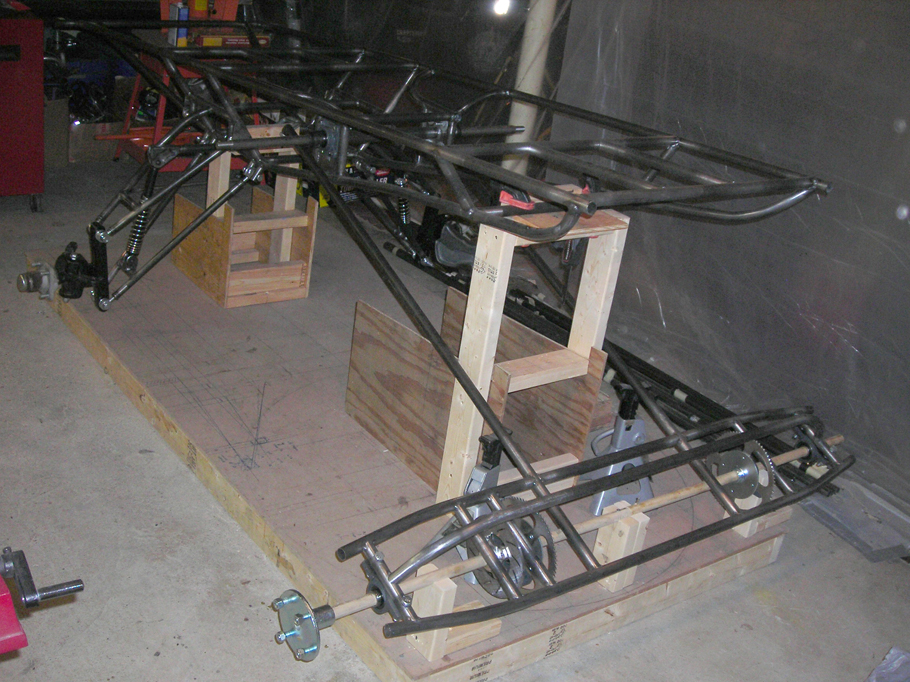

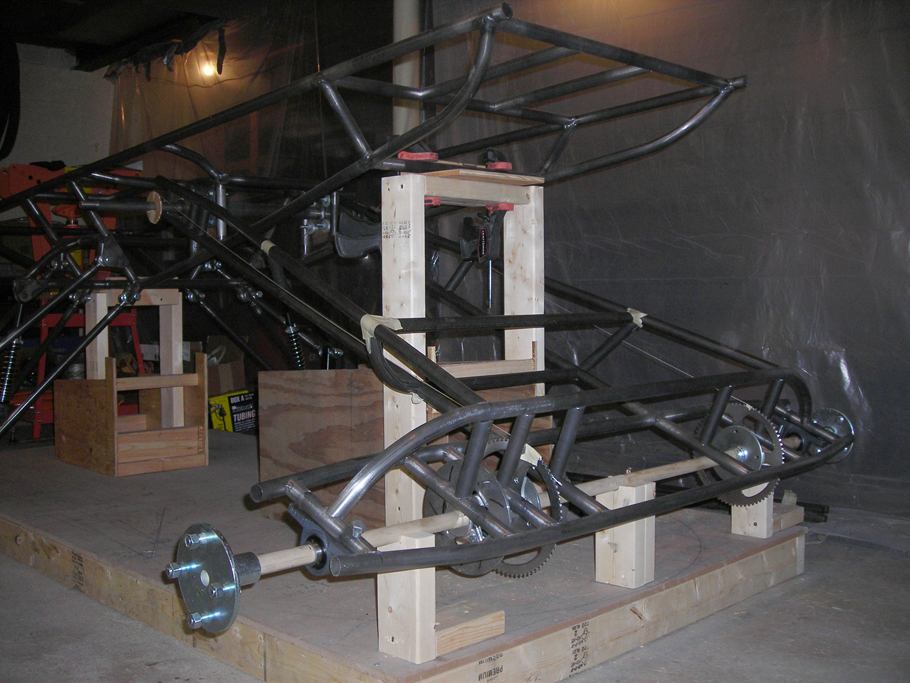

The rear axle carrier was fabricated by first locating the axle in relation to the frame on a fixture. The axle carrier was then created by connecting-the-dots between the mid-frame main pivot point and the axle. Shocks allow suspension travel and provide additional attachment between the frame and carrier.

Questions contact:
tom.wilson@thirstybeachlandscaping.com



  May 9, 2010

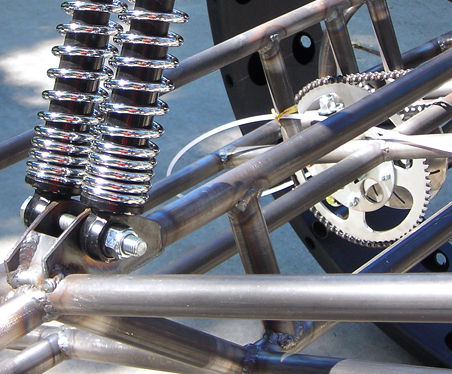

  Rear Suspension Detail

Rear Suspension Detail

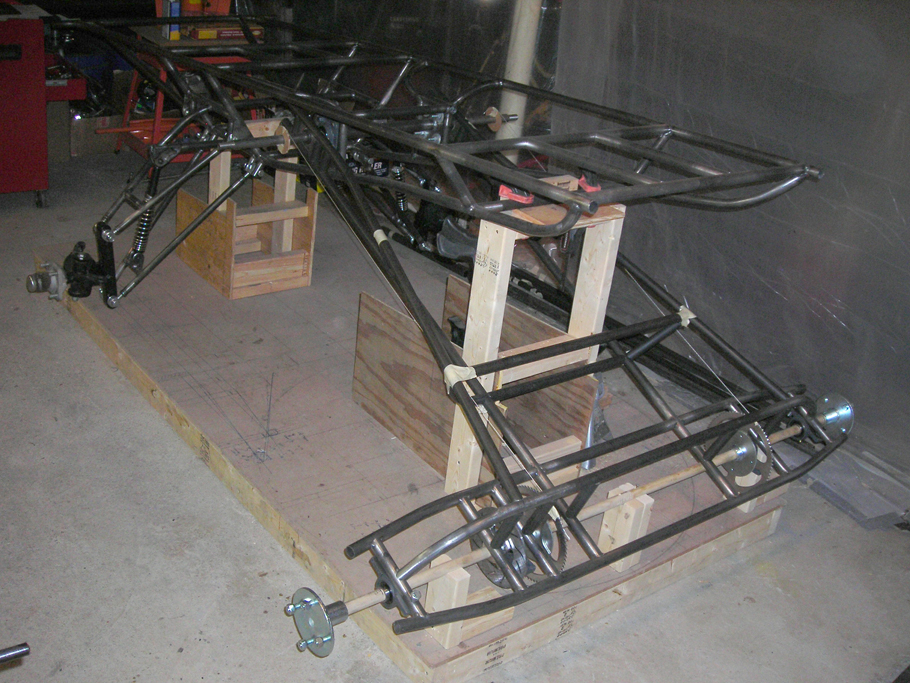

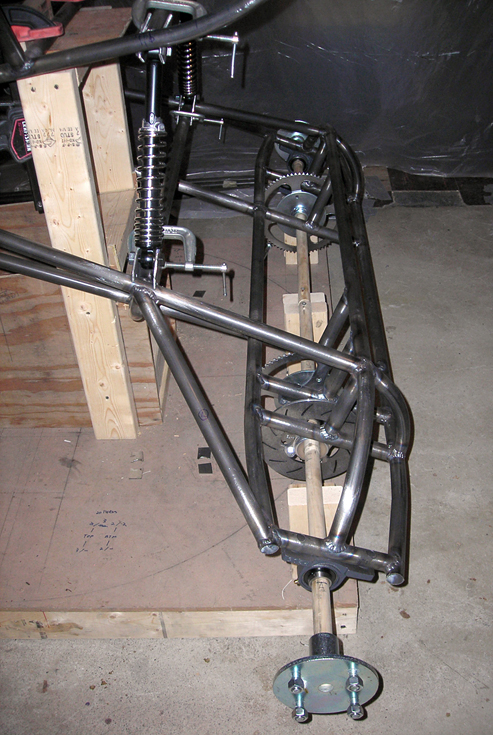

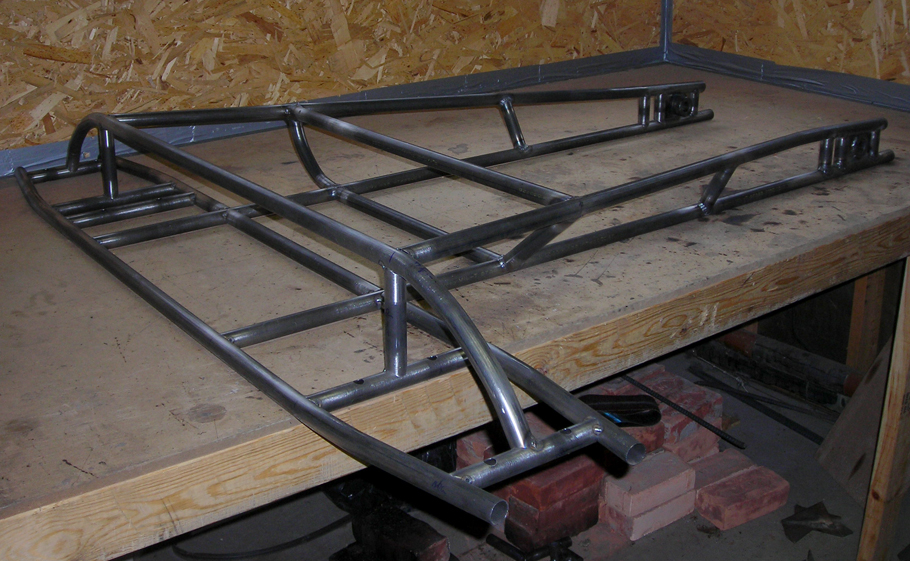

January 22, 2010   Rear Axle Carrier In-Process	January 22, 2010   Rear Axle Carrier In-Process	January 22, 2010   Rear Axle Carrier In-Process

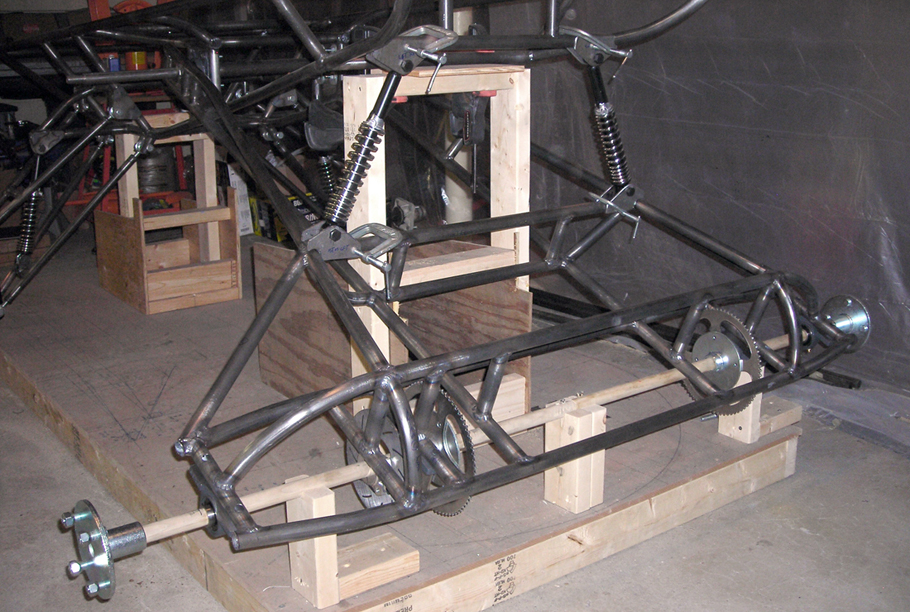

January 22, 2010   Rear Axle Carrier In-Process	February 8, 2010   Rear Axle Carrier In-Process	February 8, 2010   Rear Axle Carrier In-Process

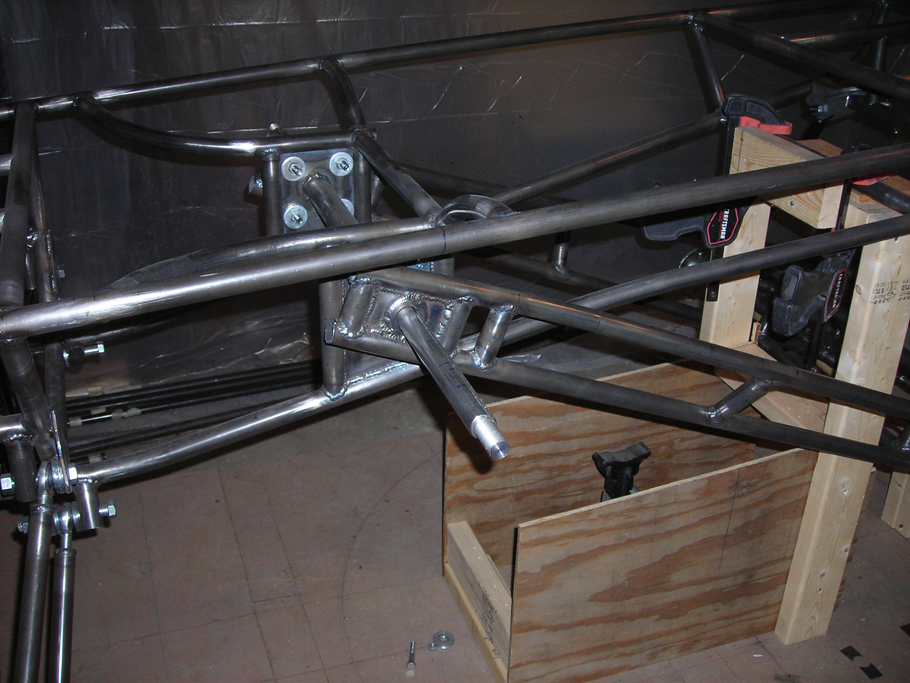

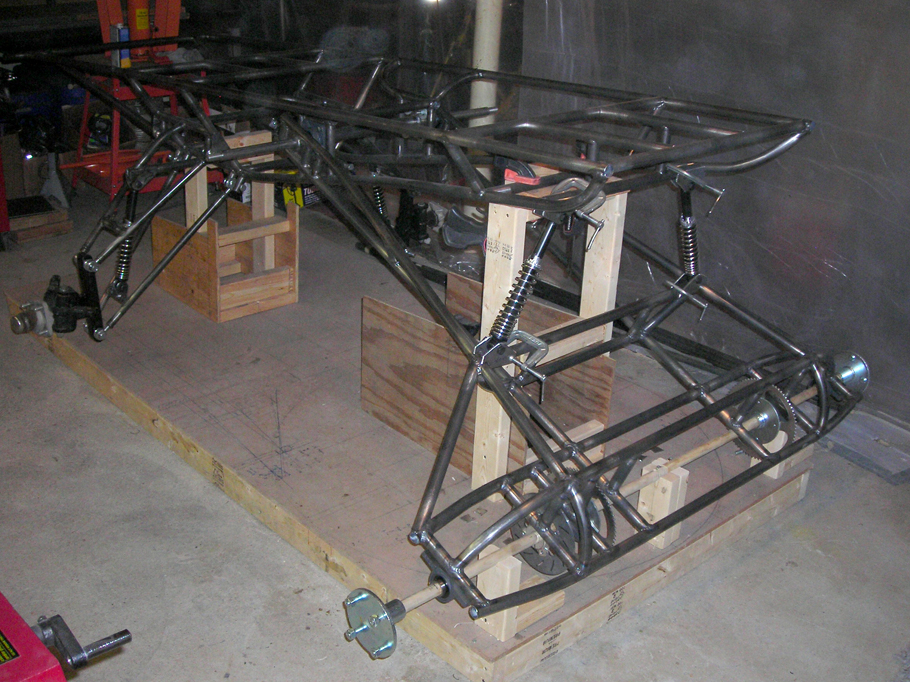

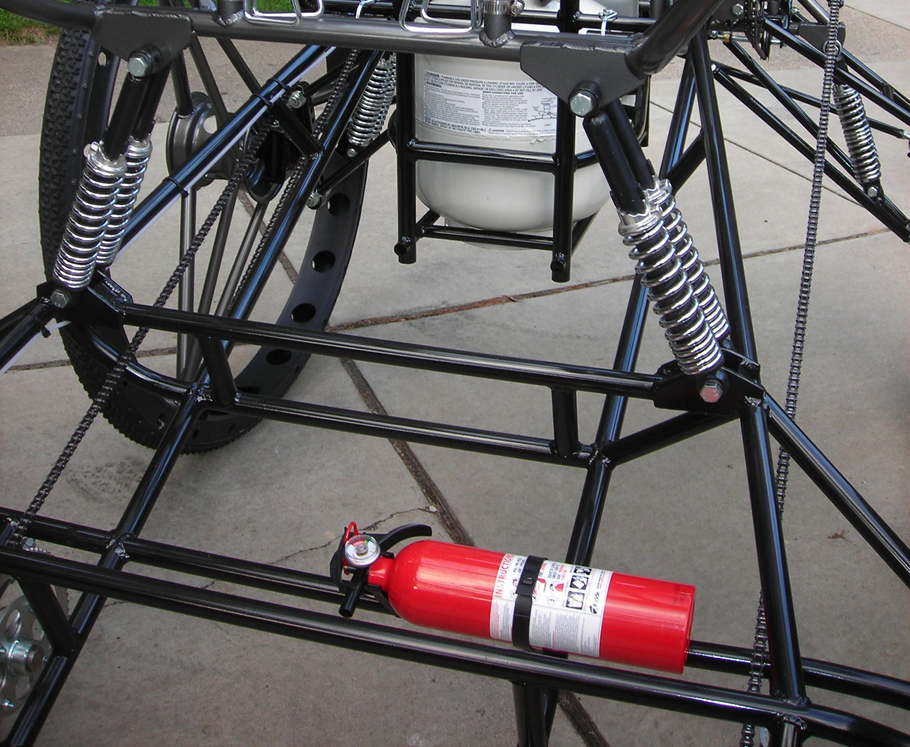

January 22, 2010   Weld-Up of Rear Axle Carrier	February 8, 2010   Mid-Frame Pivot Point ( Rear Axle to Right )	June 26, 2010   Finished Rear Carrier with Mounted Flame Effect Extinguisher
