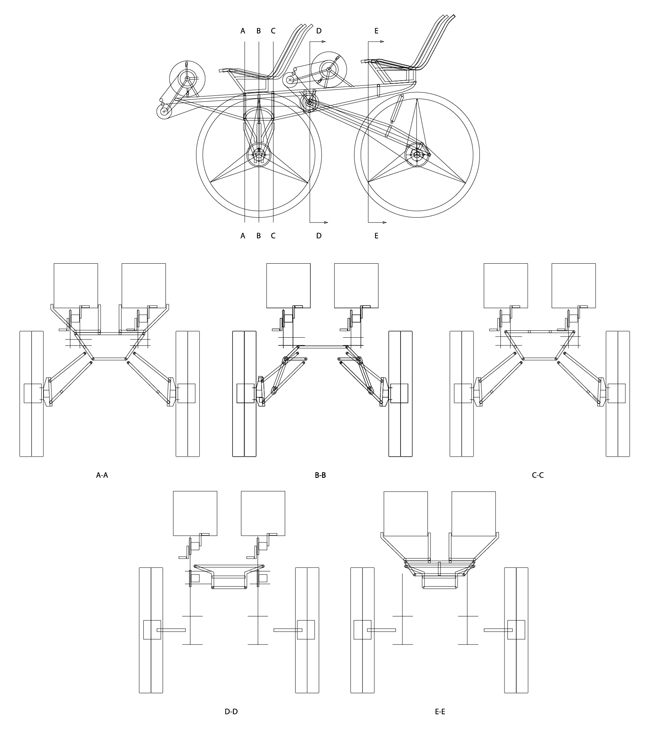

  Side & Cross Sections

Side & Cross Sections
November 2009

Essentially a do-over of the DogSled, the BigDog was designed and built between 2009 and 2010. Thinner chromoly tubing and design changes reduced overall weight by more than half when compared to the DogSled. Drivetrain modifications also reduced much of the drag that the DogSled design introduced.

Boxer
BigDog
DogSled
Pup
Nahji

Design exploration and the final design process utilized software to create digital 3D models and dimensioned line drawings. Cross sections and details were developed as required. Steering geometry studies were also created.

  November 2009
  3D Rendering

3D Rendering - November 2009


  November 2009
  3D Rendering

  November 2009
  3D Rendering

  November 2009
  3D Rendering

  November 2009
  3D Rendering

  November 2009
  3D Rendering

  February 2013
  3D Rendering - Modified Flame Effect Barrel & Front Wheels

Click to View Larger Image & Details
