April 22, 2010

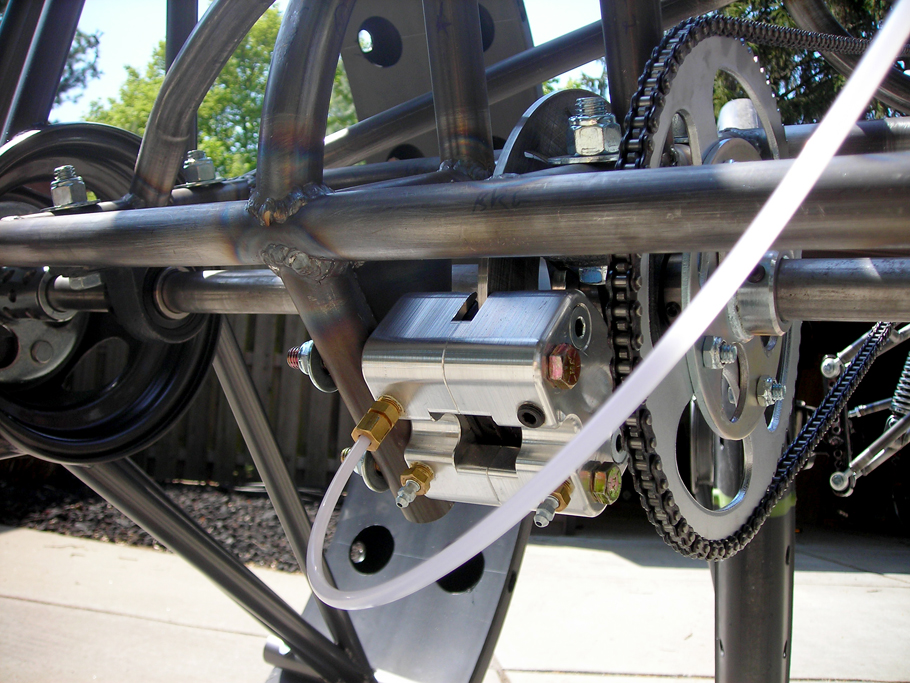

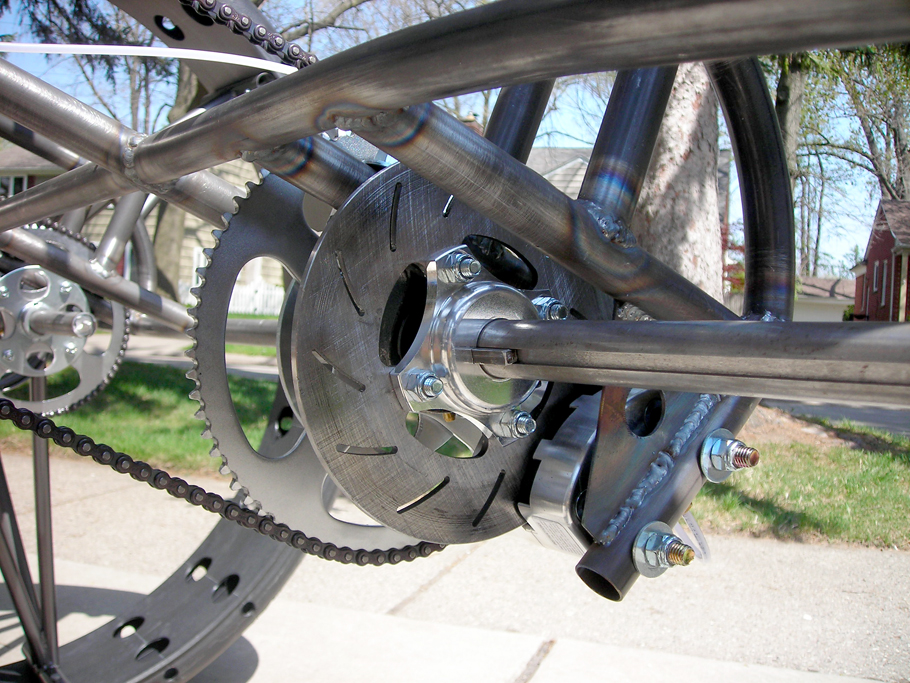

  Initial Single Disc & Caliper

Initial Single Disc & Caliper
April 22, 2010

The braking system includes go-cart hydraulic brake discs, calipers and hand lever. The initial design used a single disc and caliper. This didn't provide enough stopping force so a second disc and caliper were added. The hydraulic line was split and both discs are activated through the single lever.

Questions contact:
tom.wilson@thirstybeachlandscaping.com



  July 31, 2010

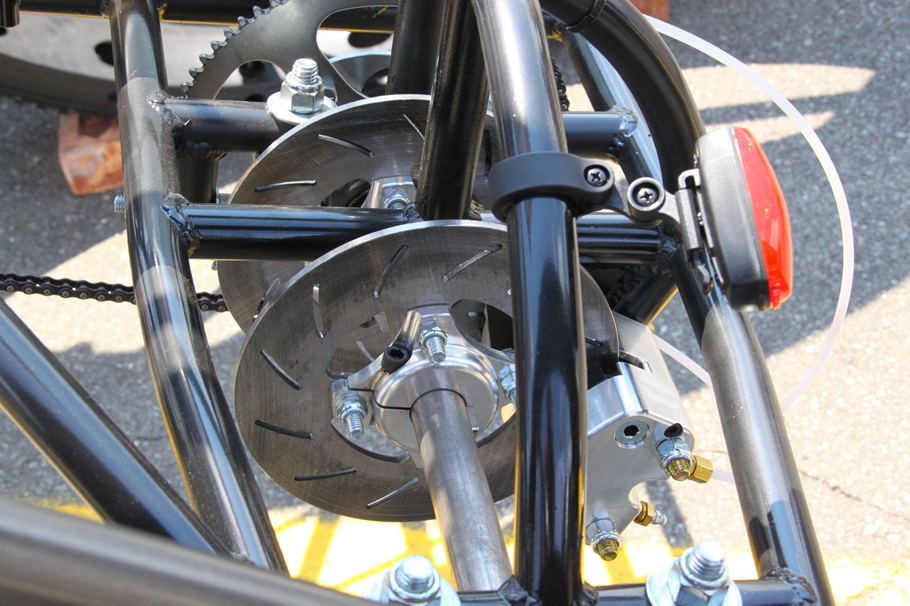

  Second Design Dual Disc & Calipers ( Photo: SamAbuelsamid / AOL )
  Additional Photos at AutoBlog

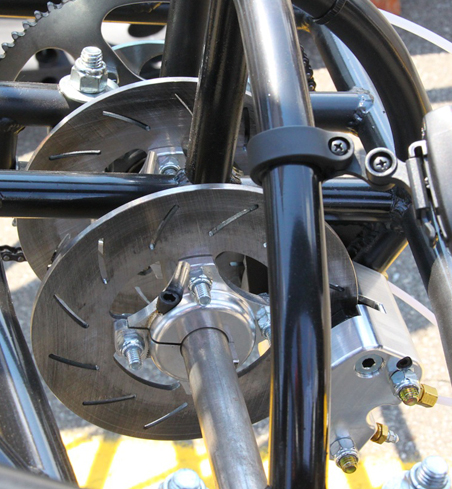

Second Design Dual Disc & Calipers

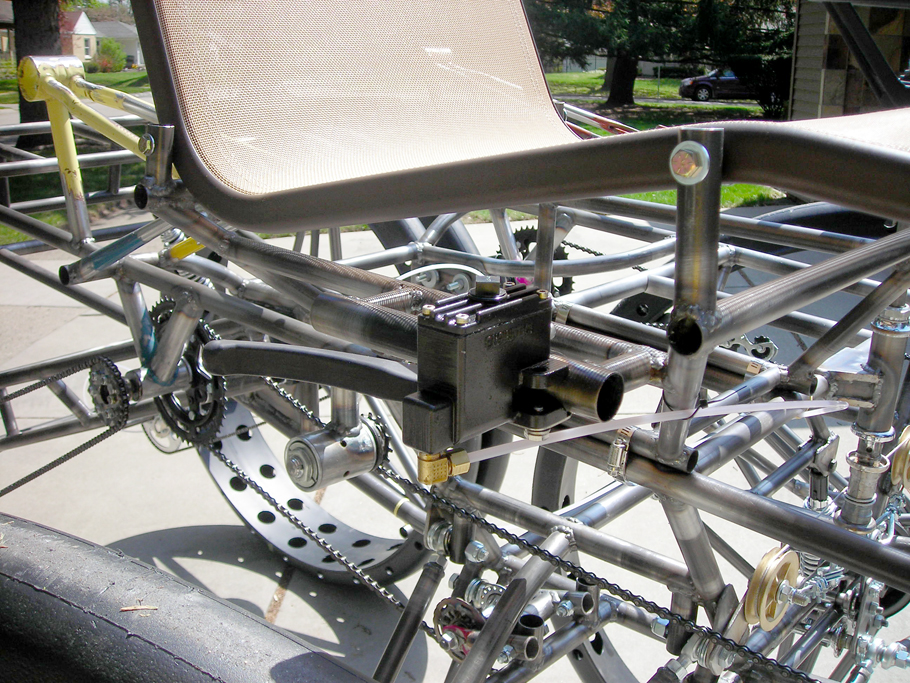

April 22, 2010   Initial Single Disc & Caliper	April 22, 2010   Initial Single Disc & Caliper	April 22, 2010   Brake Lever

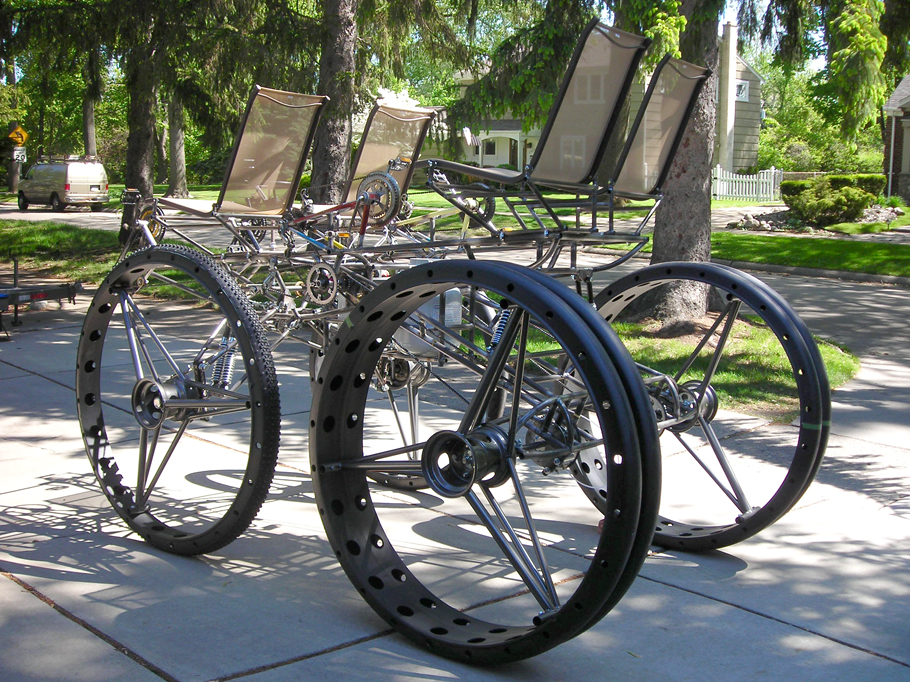

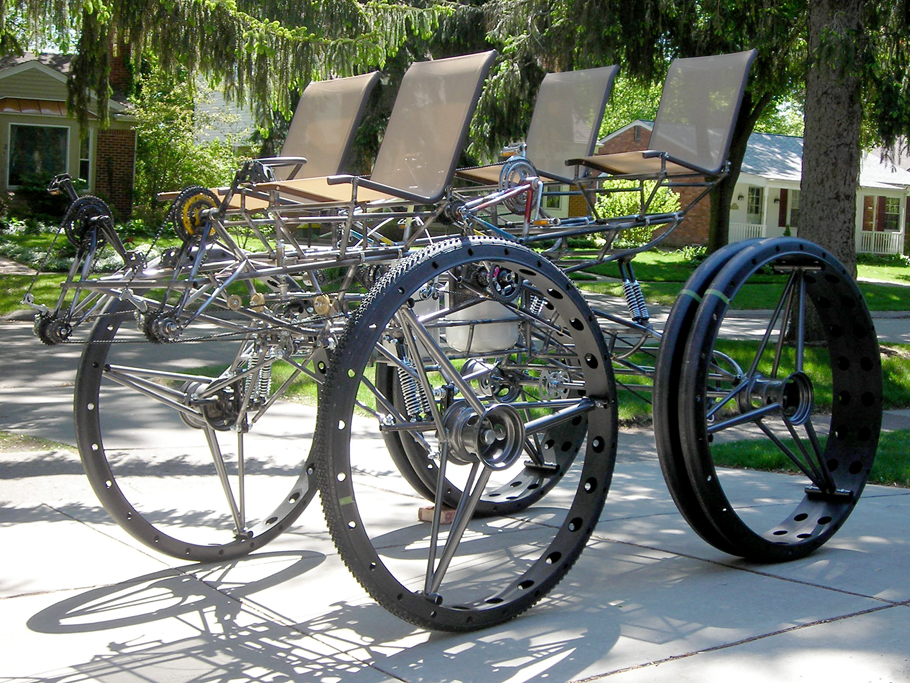

May 9, 2010   Bare Metal	May 9, 2010   Bare Metal	May 9, 2010   Bare Metal

Click to View Larger Image & Details
