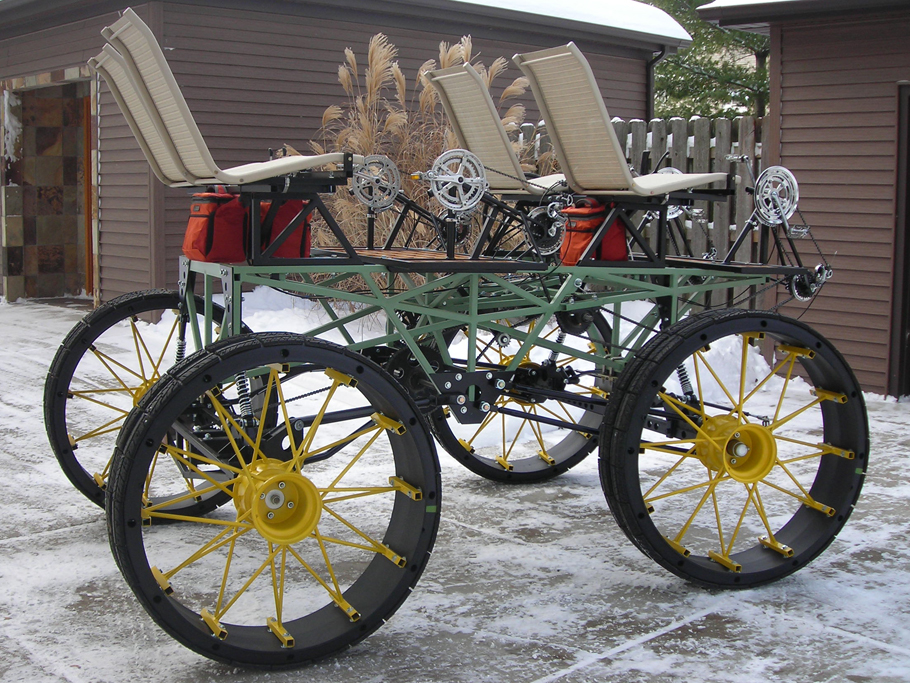

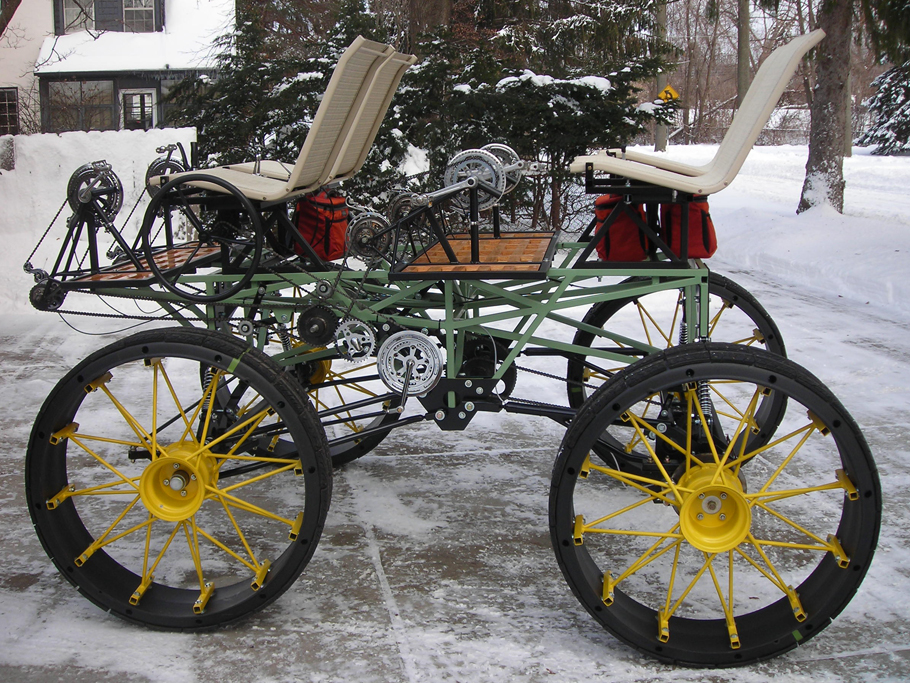

DogSled in Snow
December 20, 2008

The DogSled is the first of these vehicles and was designed and built between 2008 and 2009. Being the first it suffers from a bit of over engineering and over design. While the end result can probably withstand most anything, it is extremely heavy for a pedal vehicle.

Boxer
BigDog
DogSled
Pup
Nahji
Specifications
  • Length: 11 feet
  • Width: 6.5 feet
  • Height: 7 feet
  • Drive: Four person pedal
  • Weight: 1100 lbs
Materials
  • Mild steel tubing (.065" and .120" wall)
  • 3/8" mild steel plate
  • 36" id HDPE plastic pipe
  • Golf cart spindles and rims
  • Misc. power-train components: #40 chain; sprockets; pillow blocks; etc.
  • Go-cart brakes, axles and rear hubs
  • Recycled bikes
  • Patio chairs
Designer & Builder

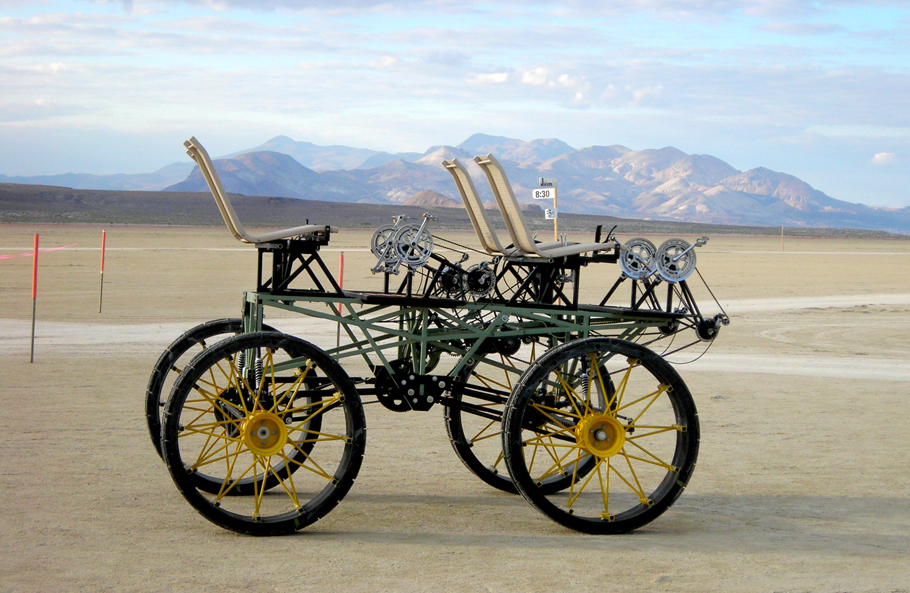

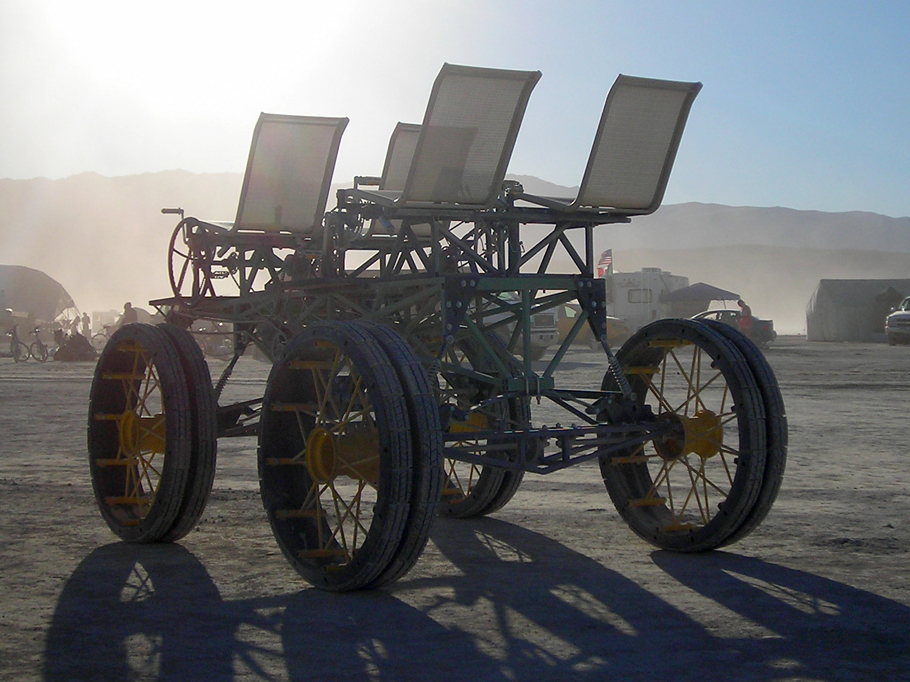

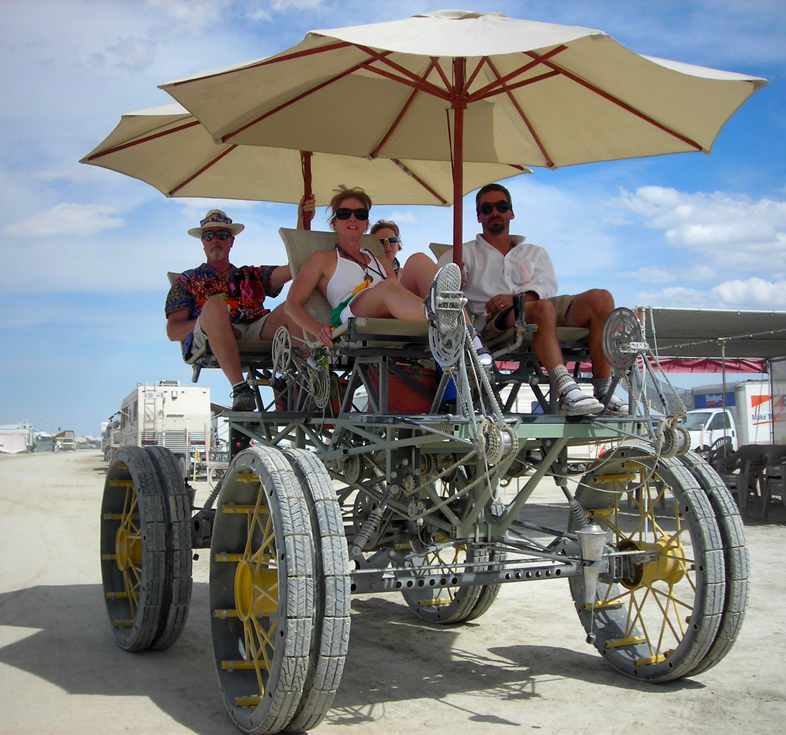

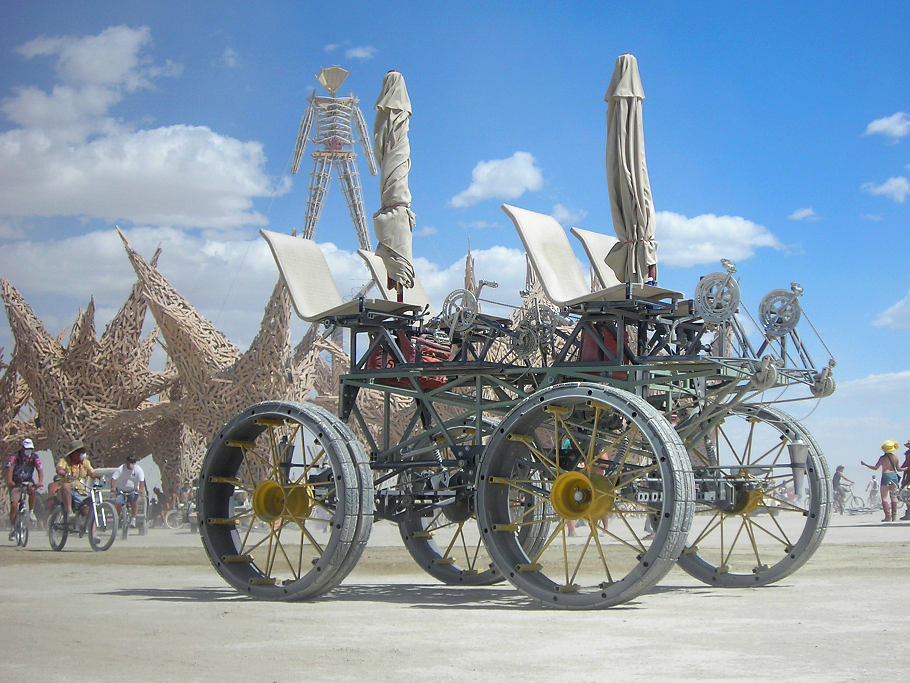

Burning Man 2010
