December 2009

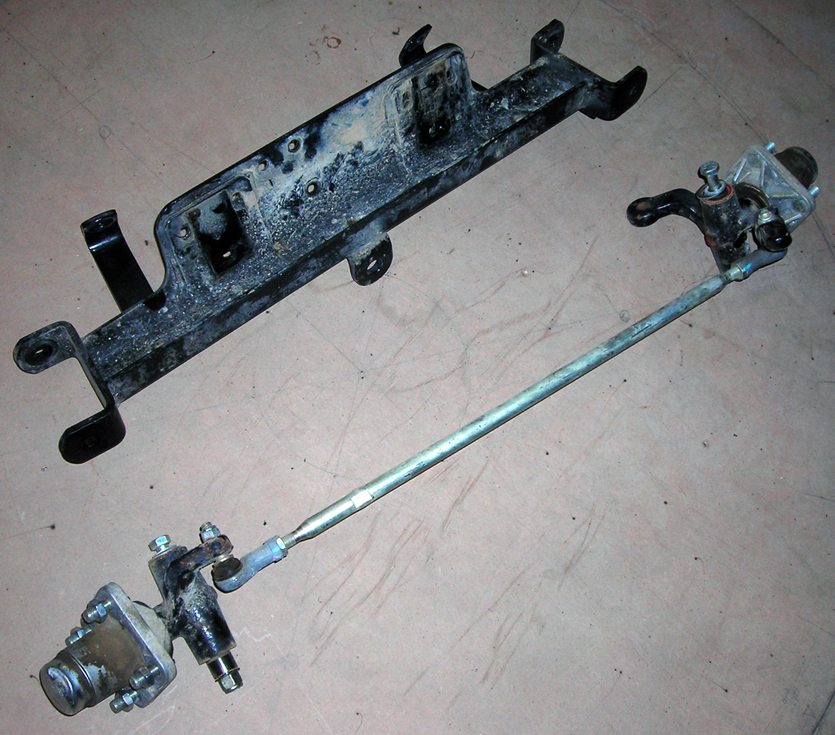

  Golf-cart Front Spindles, Tie Rod & Axle / Brackets

  December 2009

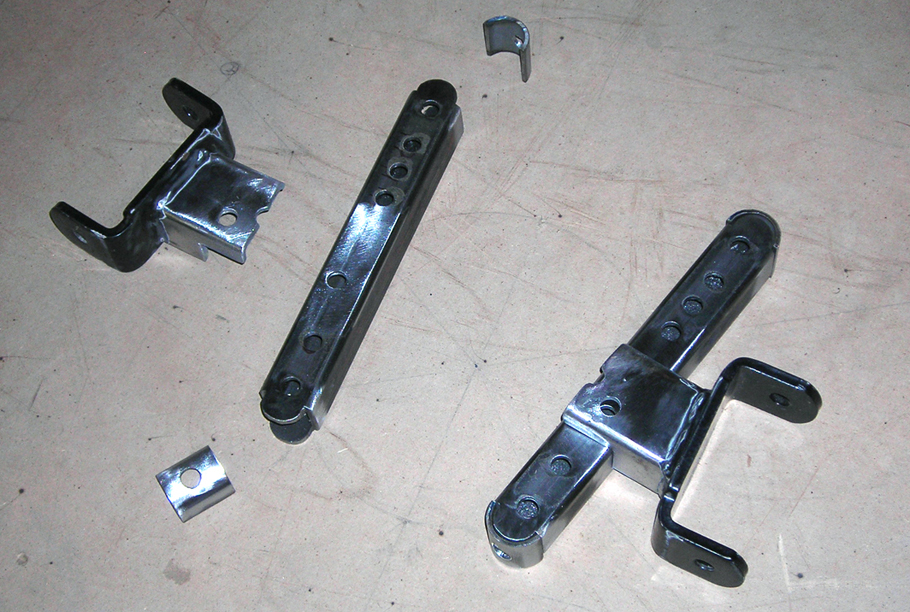

  Spindle Bracket Modifications

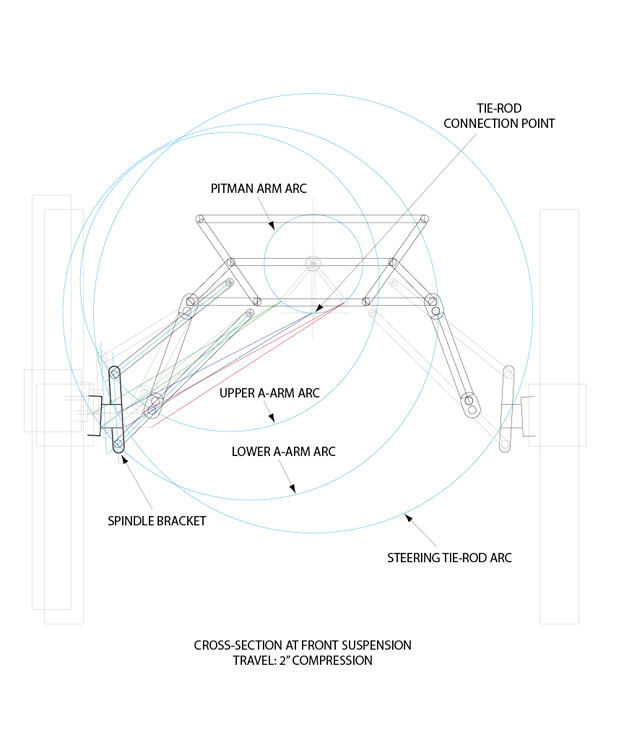

      There are two angles that had to be considered when making the modifications. Camber is the angle thru the spindle pivot centerline as seen from
      the front view. The top of the spindle bracket tilts toward the frame center so that the spindle pivot centerline aligns close to the point where the front
      tire contacts the ground. This allows the tire to pivot on that contact point when turning. Caster is the angle thru the spindle pivot centerline as seen
      from the side view. The top of the spindle bracket tilts toward the rear. This creates a self centering effect as the spindle pivot centerline aligns to a
      point just in front of were the front tire contacts the ground. With this angle off-set the vehicle is lifted slightly as the wheels are turned. The vehicle
      weight provides the self-centering force to the steering geometry giving more control when turing and aiding travel in a straight line.

  December 2009

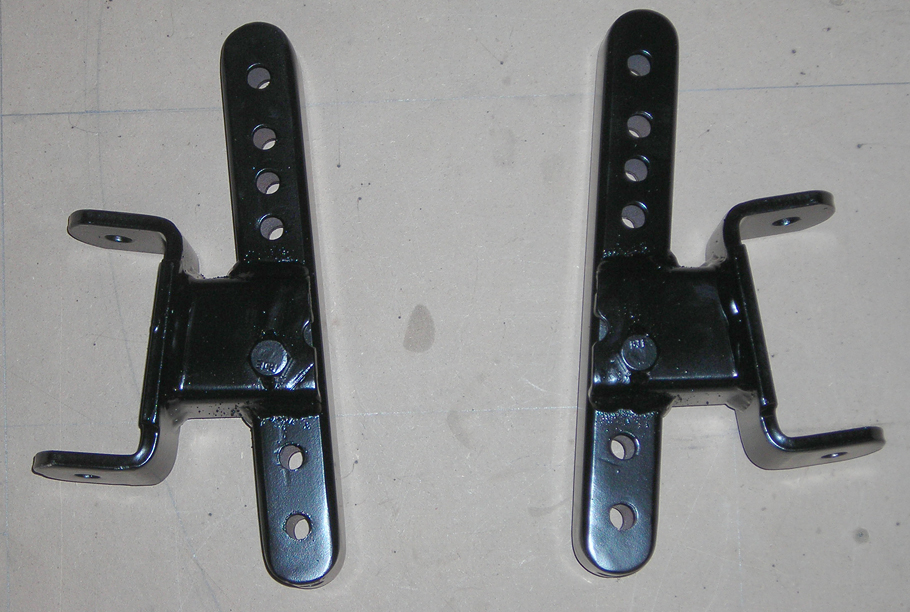

  Completed Spindle Brackets

  December 2009

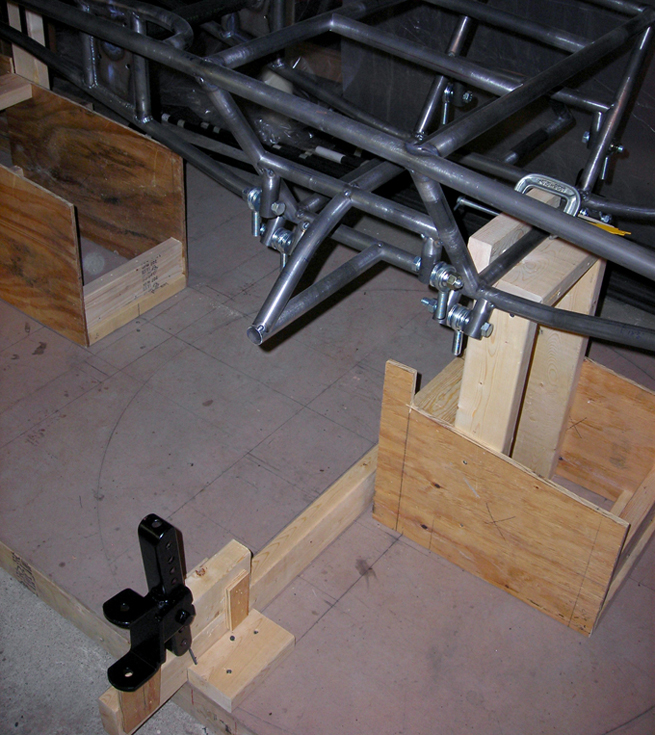

  Frame & Spindle Bracket in Fixture

  December 2009

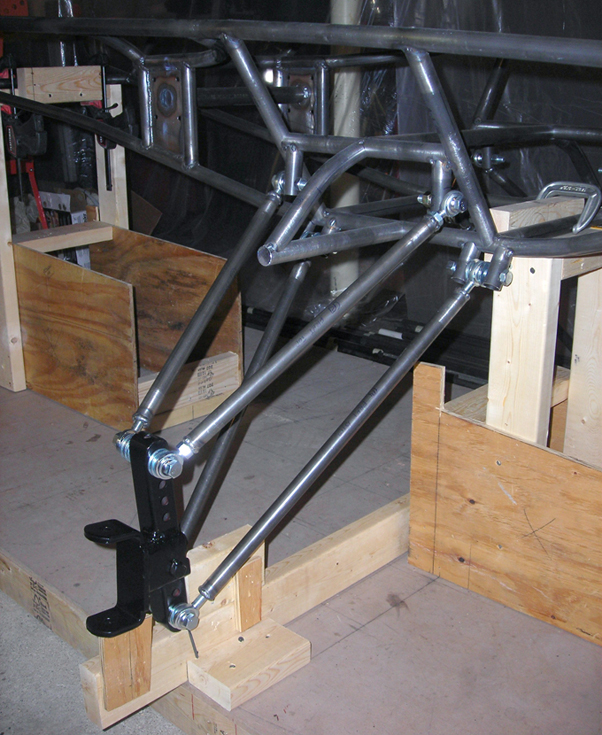

  A-arm Side Additions

  December 2009

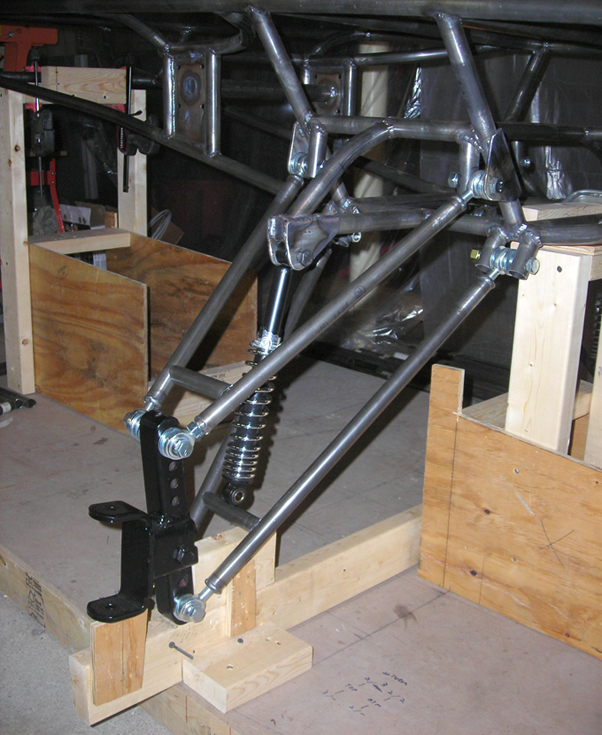

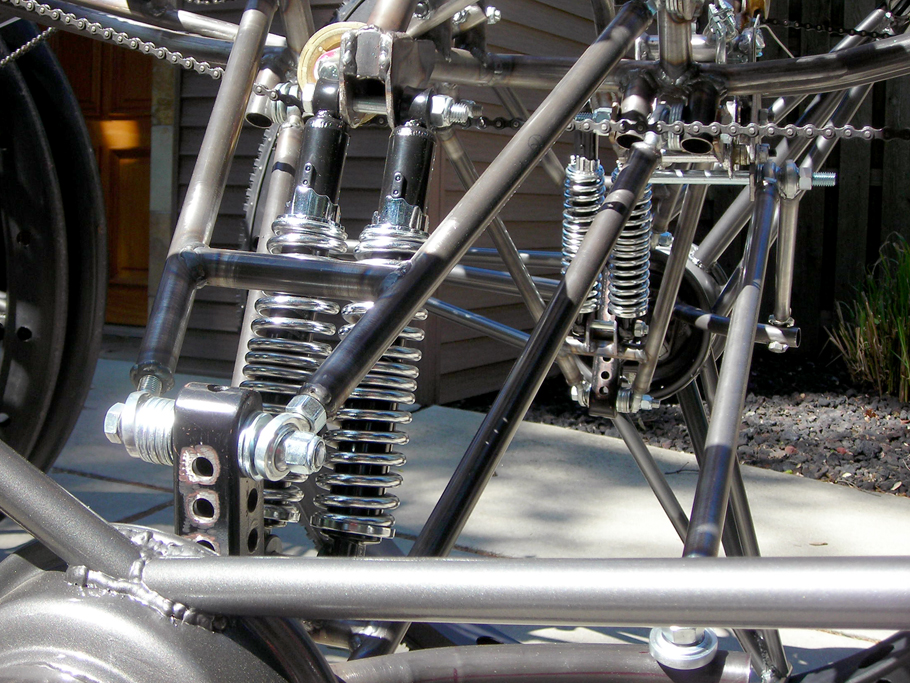

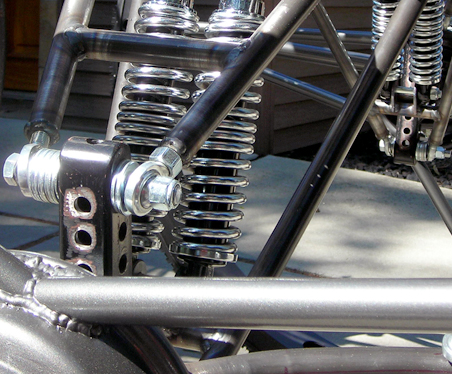

  Spring Attachment Points

  December 2009

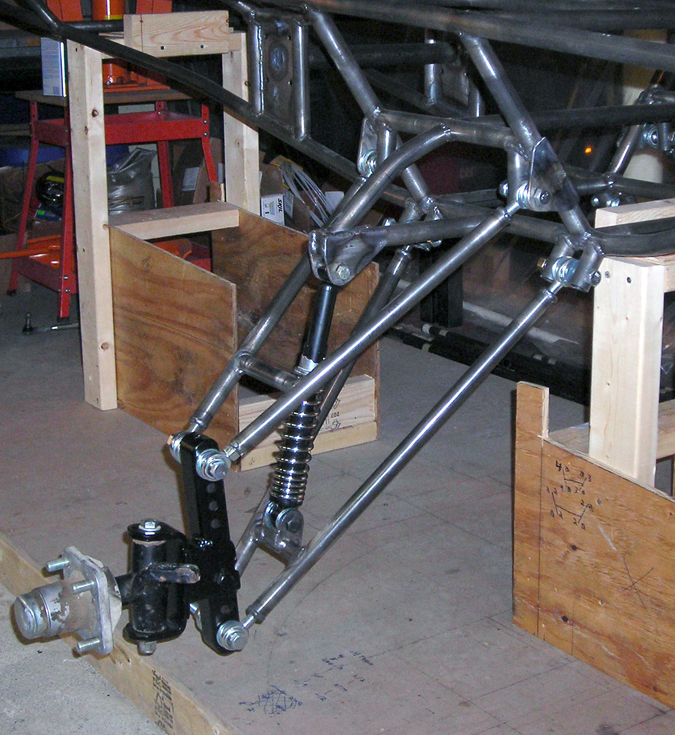

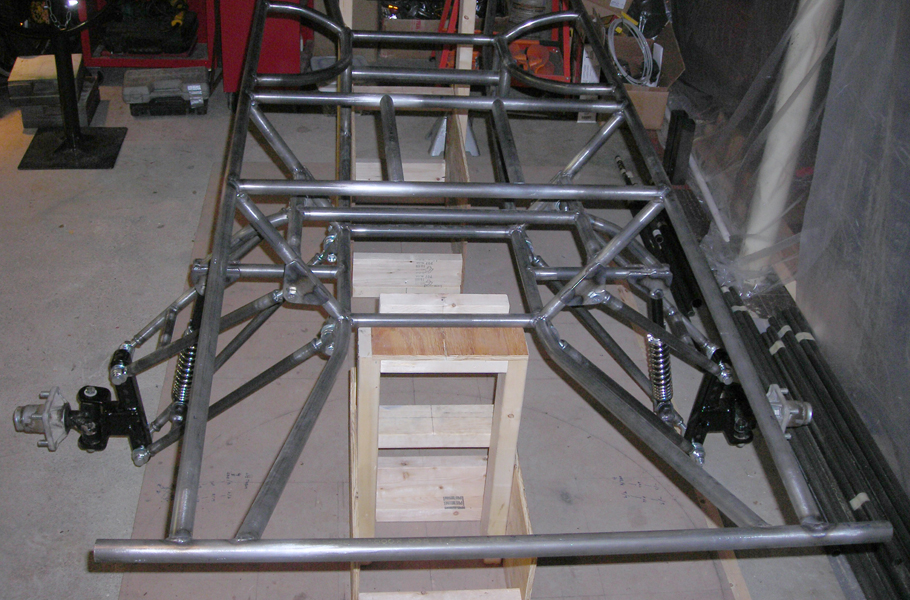

  Front Suspension Completed

  December 2009

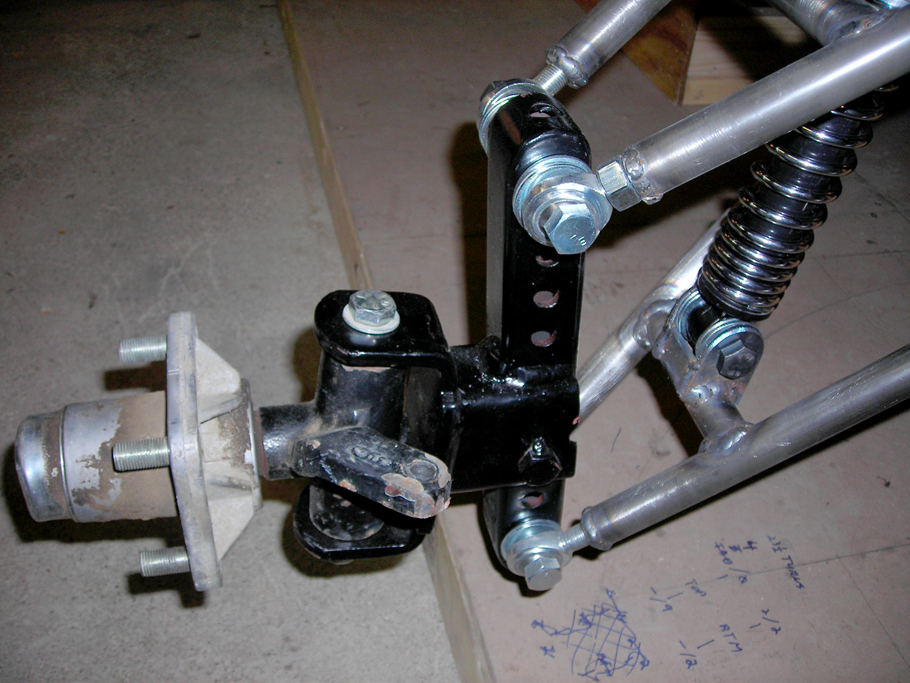

  Spindle & Bracket Detail

  December 2009
  Completed Suspension Front View
