Steering Cable & Steering Wheel
Steering Cable & Steering Wheel
April 4, 2013
A go-cart steering wheel mounts to a bicycle headset. Forks were removed and a drum fabricated on the headset bottom end. A sheathed cable warps around the drum and connects to a center track rod. The track rod turns the front wheels through tie rods as it is pulled left or right by the cable.

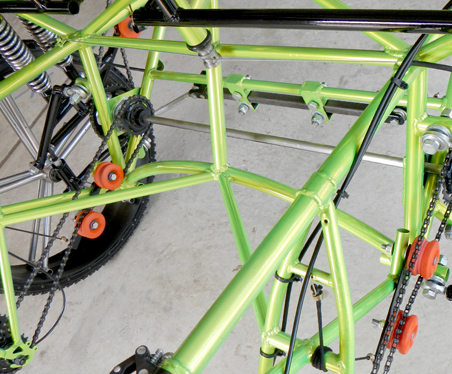

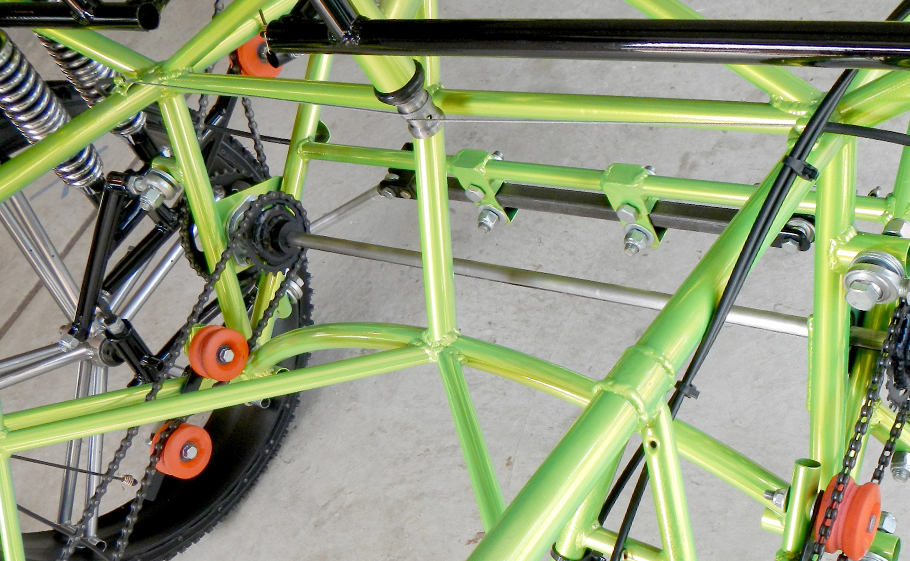

Steering Cable, Drum & Center Track Rod Overview - April 16, 2013
Steering Cable, Drum & Center Track Rod Overview - April 16, 2013
March 30, 2013

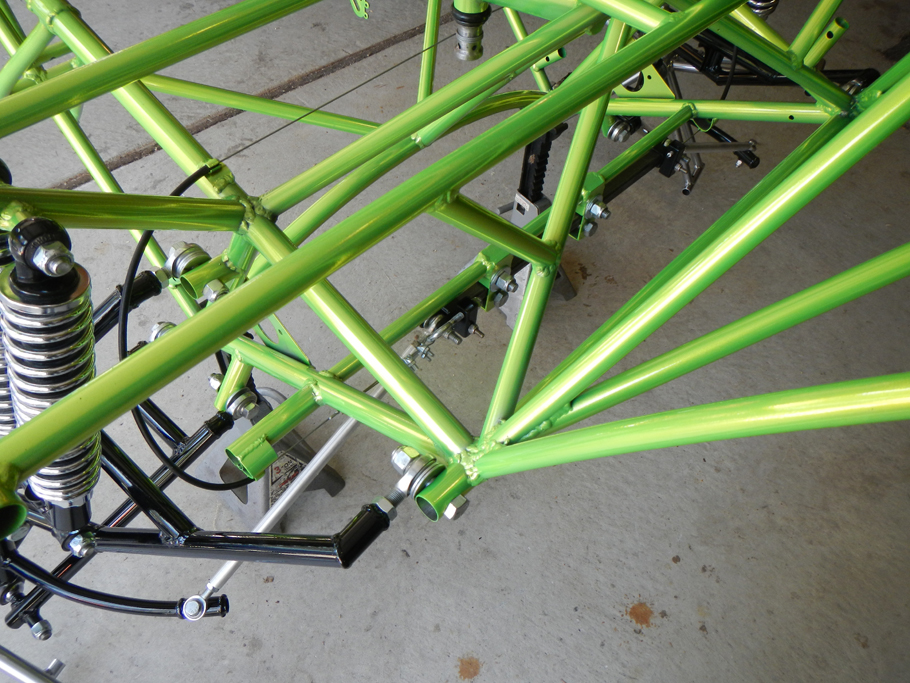

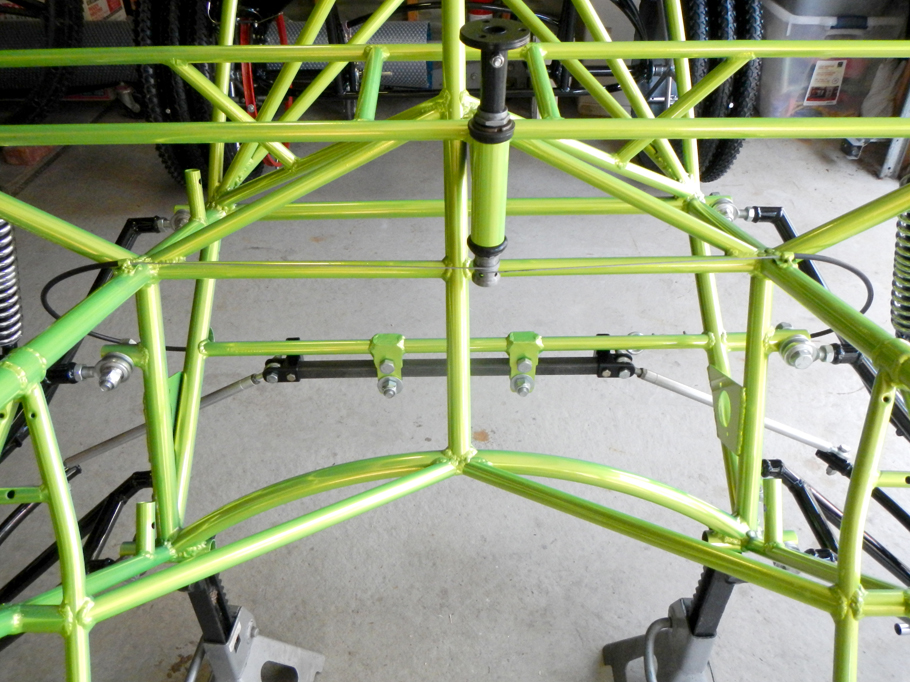

Cable Routing Overview During Final Assembly
Cable wraps steering drum in center of image then runs through sheathing left and right. The cable then exits the sheathing and connects to each end
of the center track rod ( seen under and behind the frame in this view ).
|
March 30, 2013

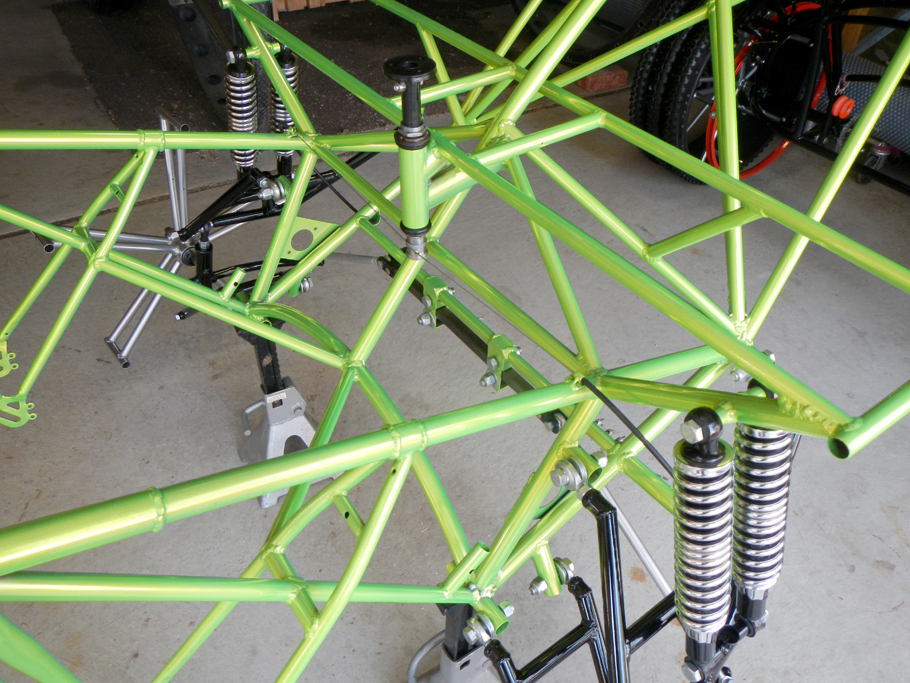

Cable Routing Overview During Final Assembly
|
May 21, 2011

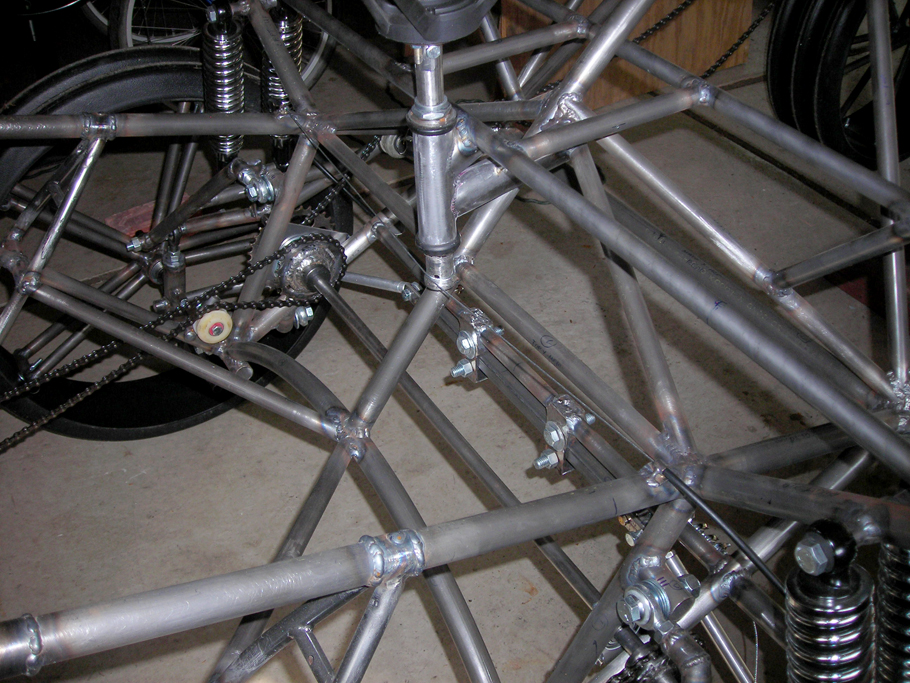

Cable Routing Overview in Bare Metal
|
May 21, 2011

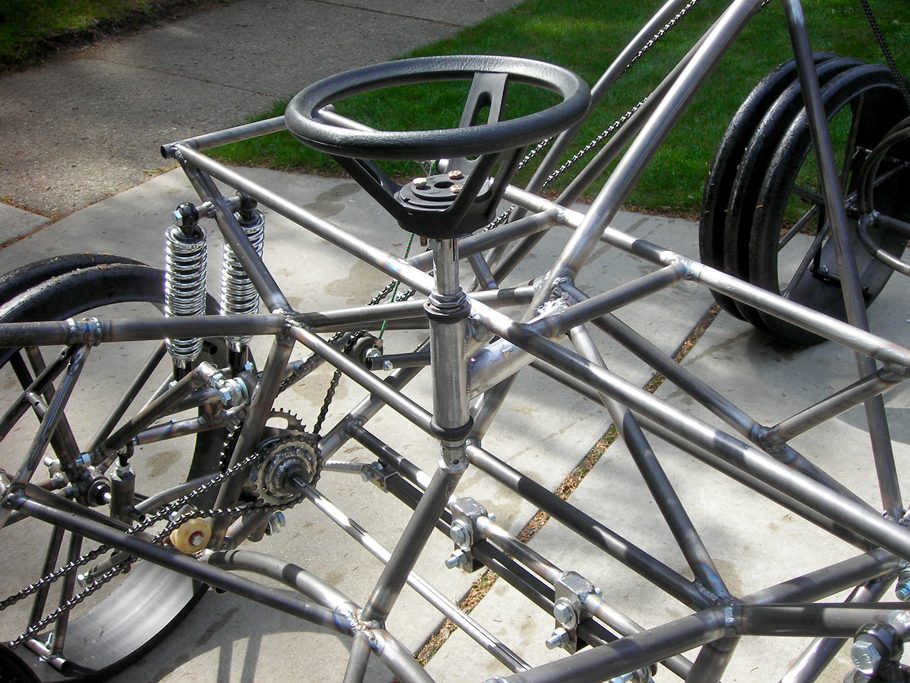

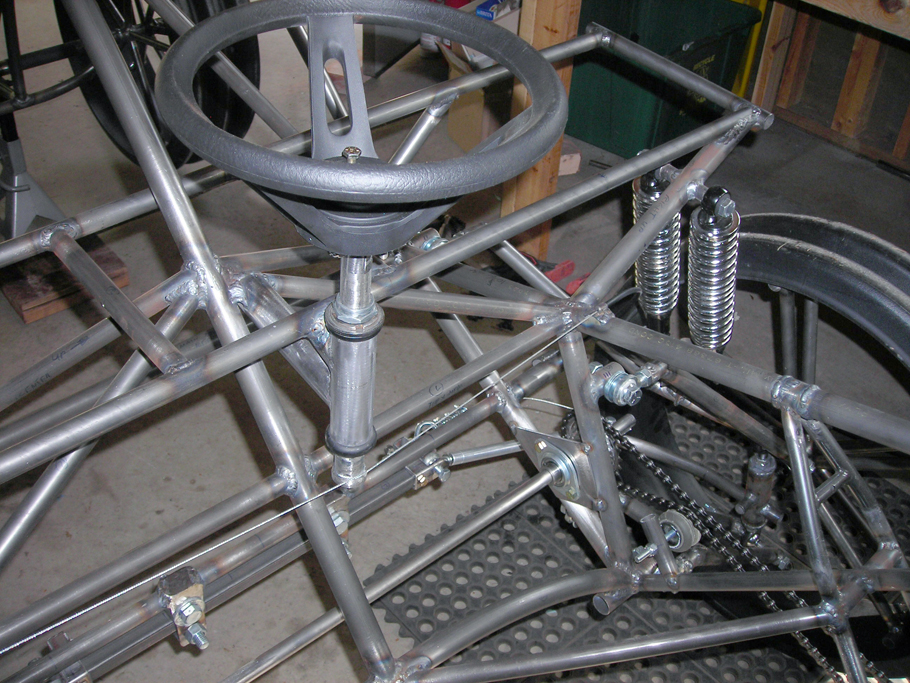

Steering Wheel & Modified Headset Detail
|
May 21, 2011
Steering Wheel & Modified Headset Detail
|
May 21, 2011

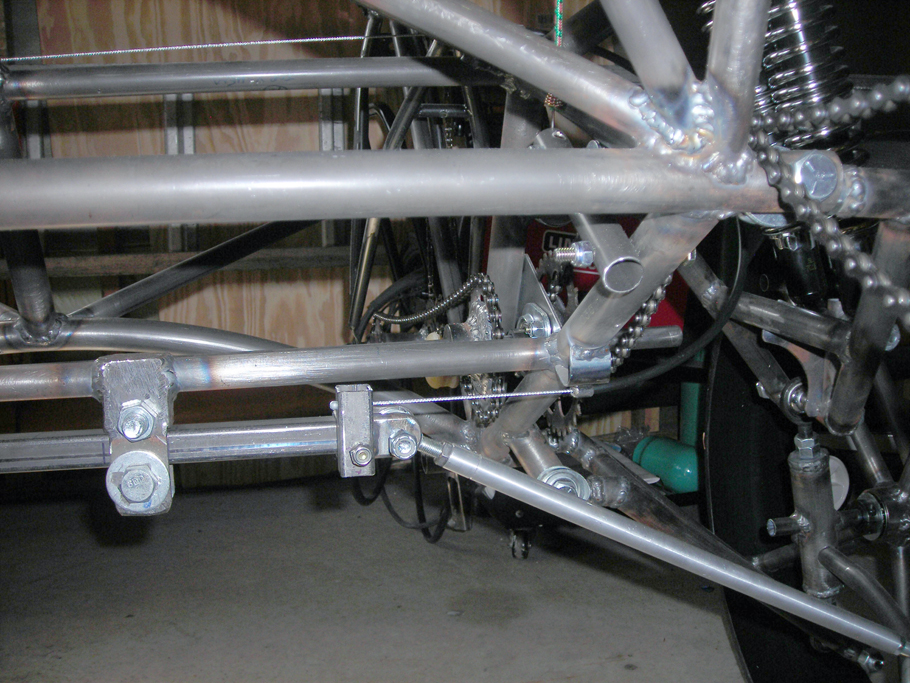

Cable & Track Rod Connection ( right side from rear )
|
May 21, 2011

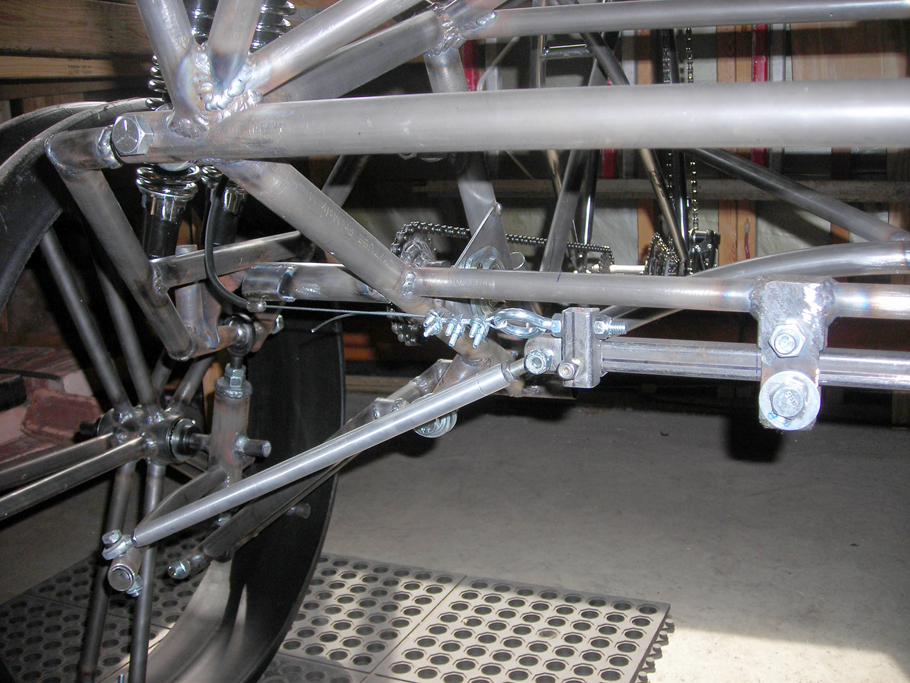

Cable & Track Rod Connection ( left side from rear )
|
May 21, 2011

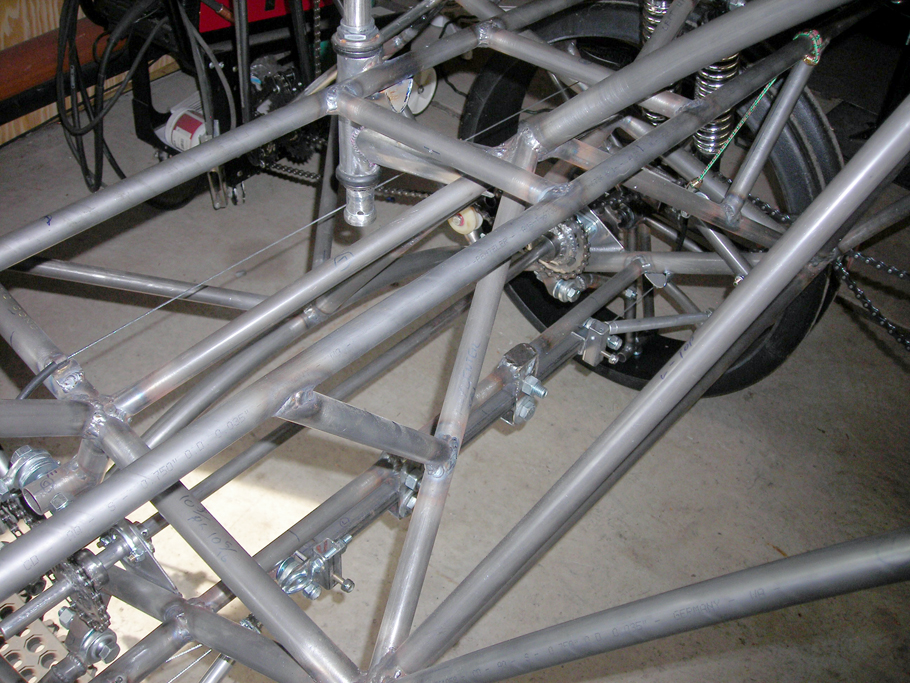

Cable Routing in Bare Metal ( top left rear view )
|
March 30, 2013

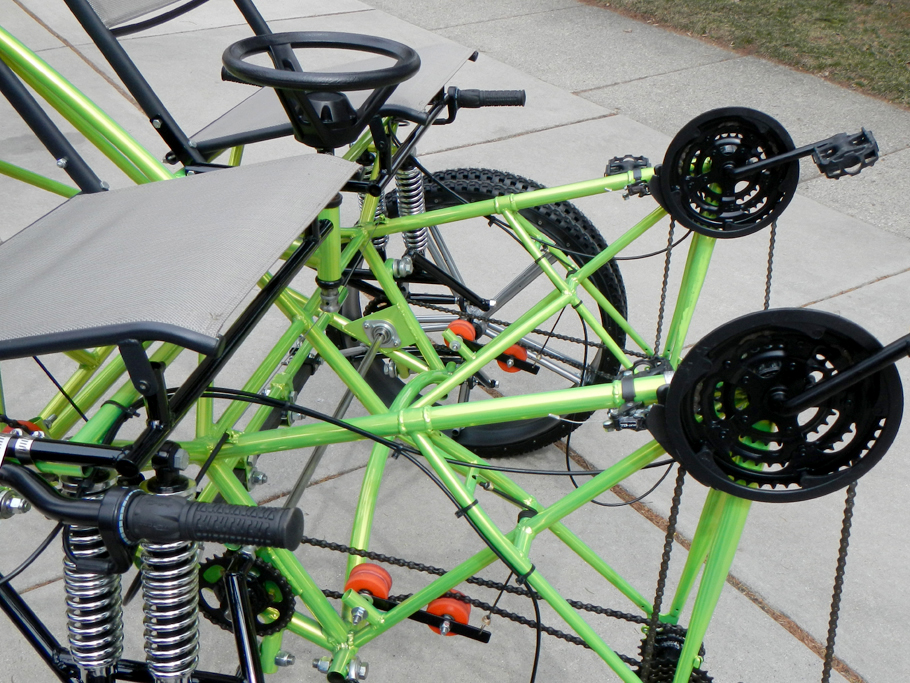

Cable Routing Overview During Final Assembly ( top left rear view )
|
