May 21, 2011
Lower Axle Stiffening Modifications
The initial design had too much flex and caused excessive toe-in and toe-out. Cross and connecting additions reduced axle flexing.
Lower Axle Stiffening Mods
May 21, 2011

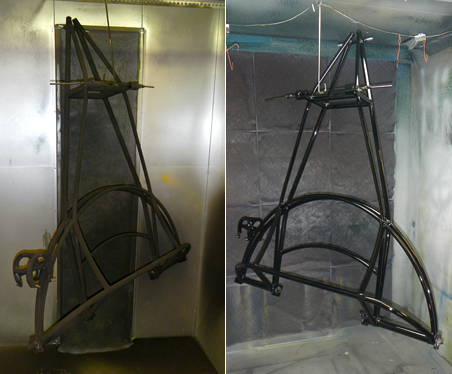

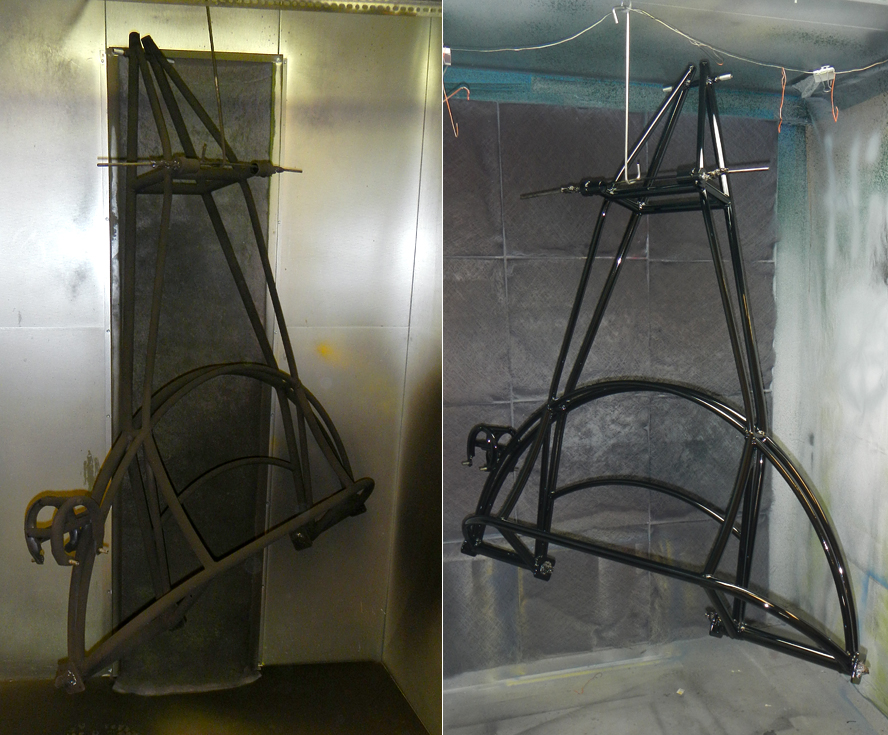

Rear Axle Carrier Powder-Coat - February 23, 2013
Powder-coated at the
Detroit TechShop
Rear Axle Carrier Powder-Coat - February 23, 2013
February 12, 2011

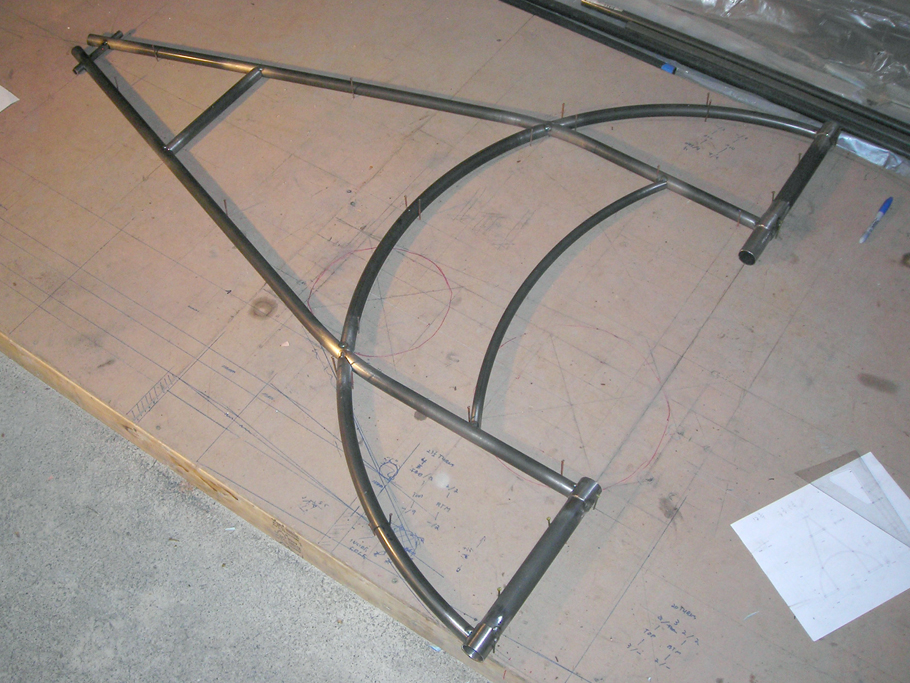

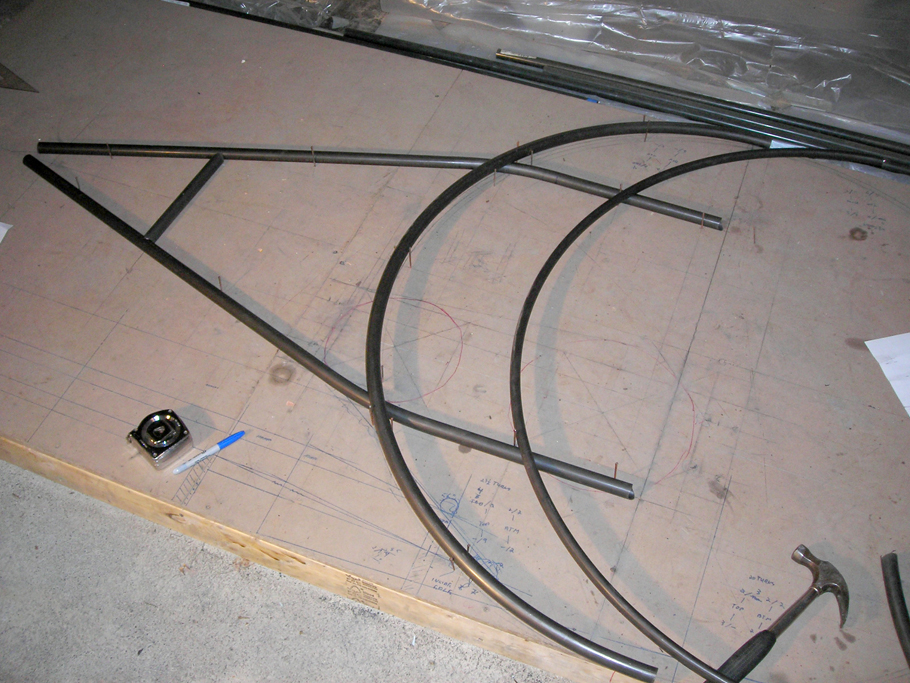

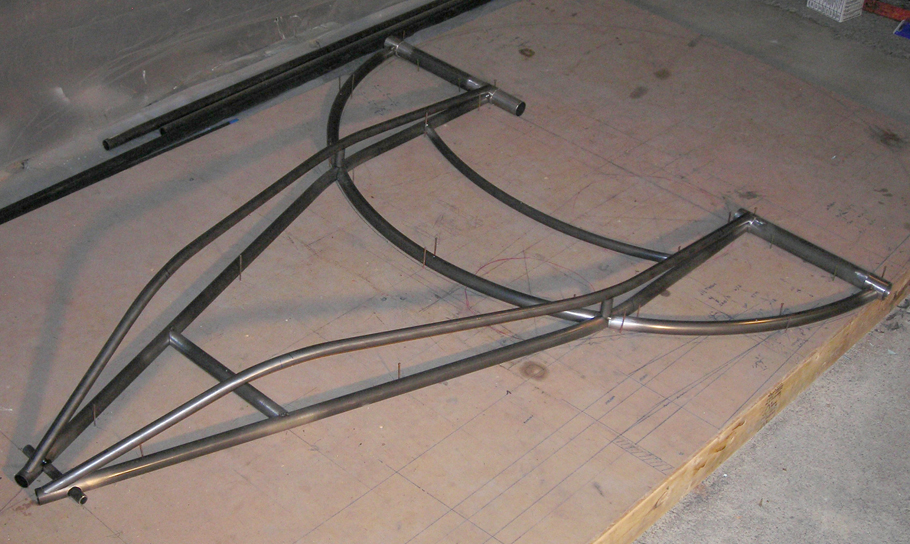

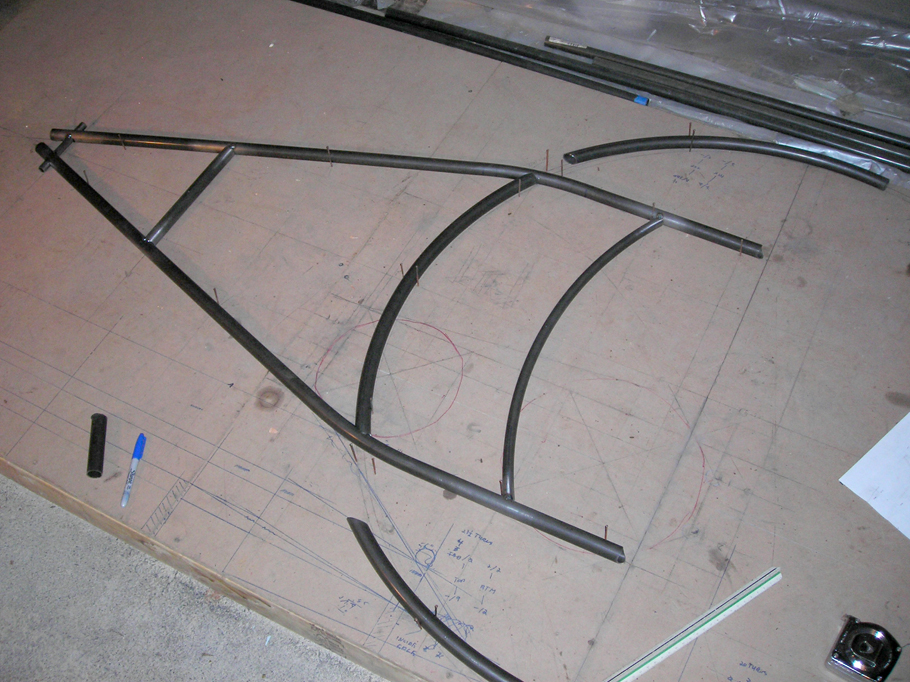

Rear Axle Carrier In-Process
|
February 12, 2011
Rear Axle Carrier In-Process
|
February 12, 2011
Rear Axle Carrier In-Process
|

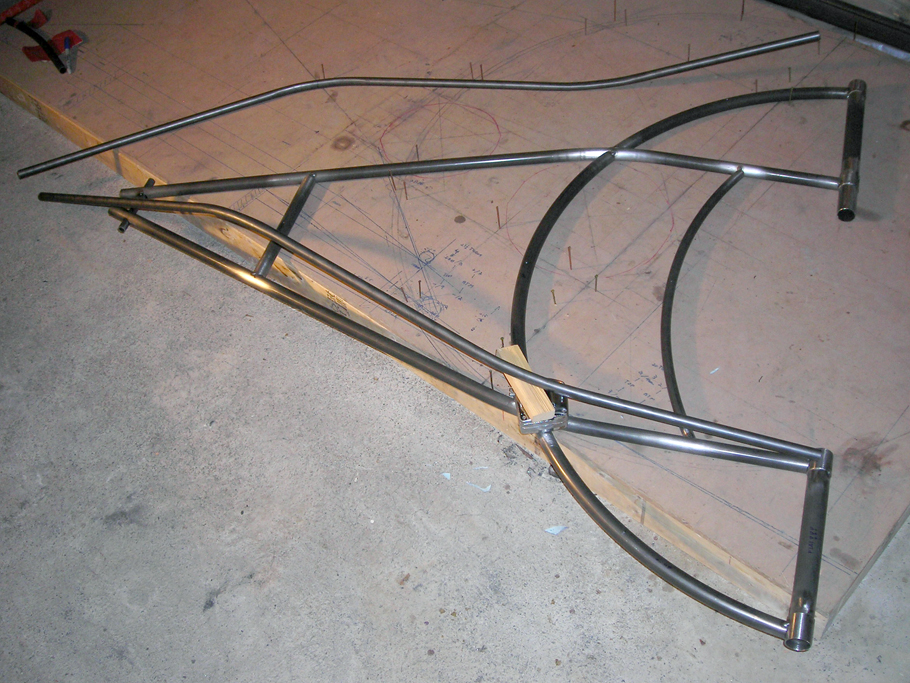

February 14, 2011
Rear Axle Carrier In-Process
|
February 15, 2011
Rear Axle Carrier In-Process
|

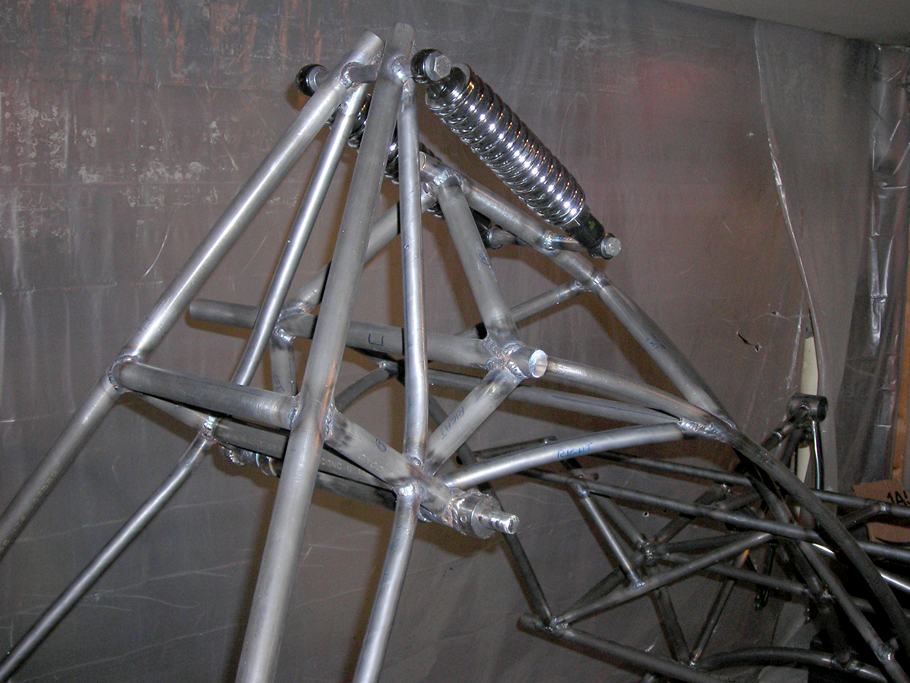

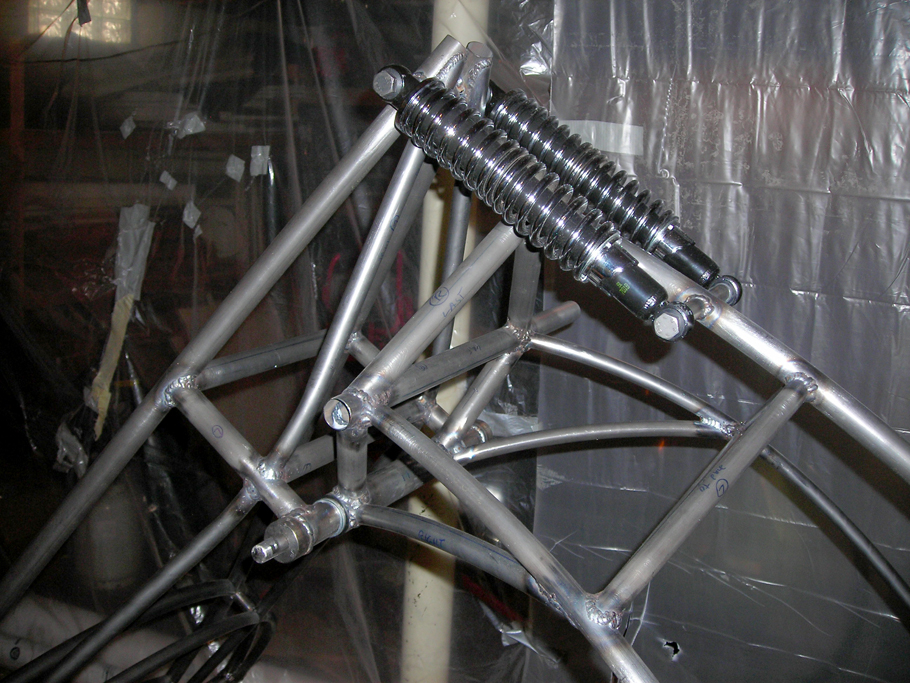

March 20, 2011
Rear Suspension Detail
|
March 20, 2011
Rear Suspension Detail
|

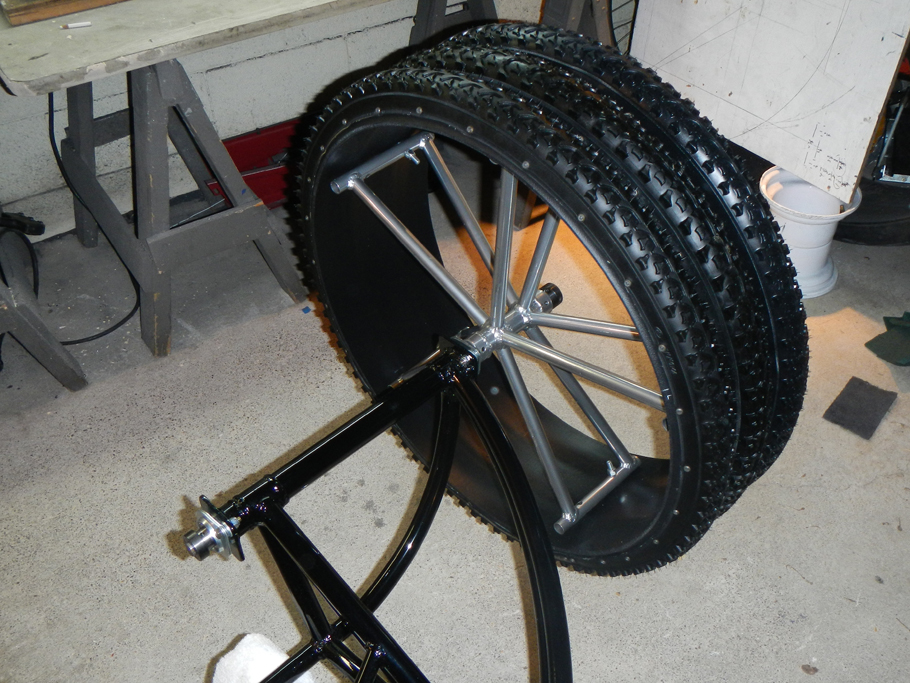

March 29, 2013
Revised Axle Flange Bearing Detail
Initially bearings with snap rings were inserted into each end of the axle tubes. The axle tubes had warped when welded so that each end did not
accurately align. This caused added drag as the straight rear axle ran through the mis-aligned bearings. Flange bearings allow some adjustment
and were added to compensate. The original bearings can be seen in the sidebar image at left.
|
March 29, 2013

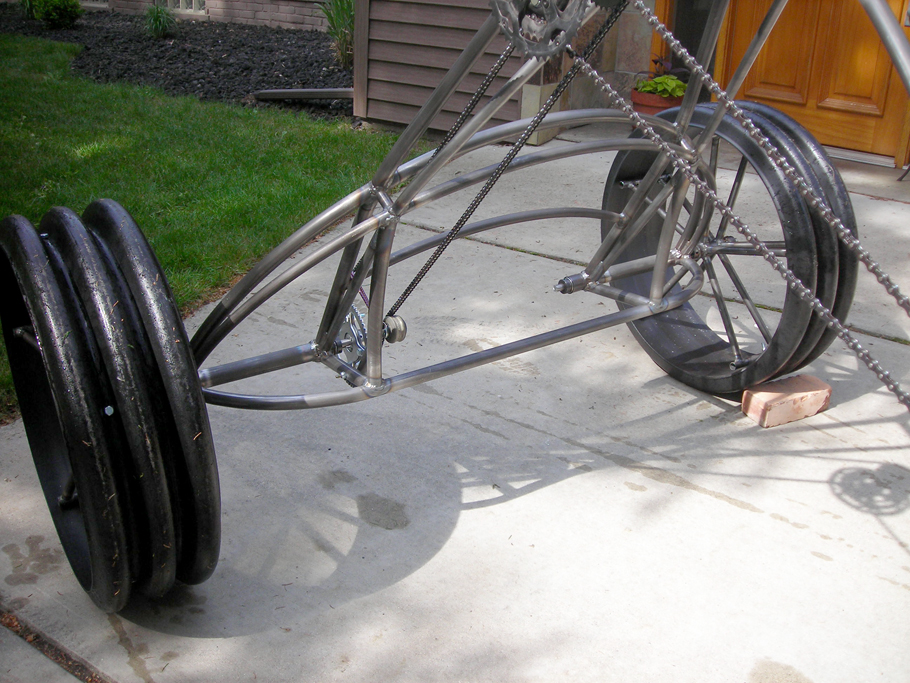

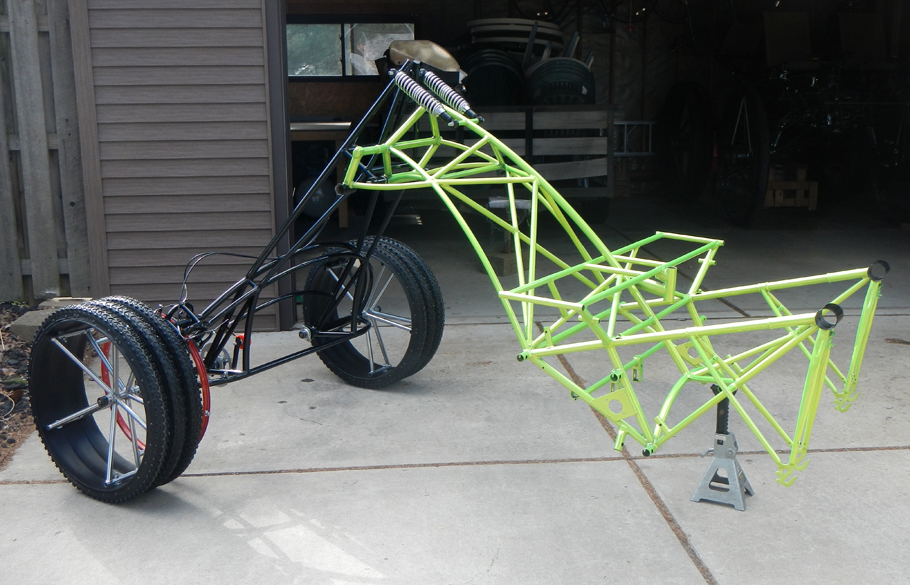

Rear Axle Carrier Attached to Frame During Final Assembly
|
Click to View Larger Image & Details
