  Wheel Mount & Tread Detail

Wheel Mount & Tread Detail
April 16, 2013

The hub centers for the Boxer are integrated into the wheel design. The front wheels use a center tube with seats, bearing races, and 5/8" tapered bearings. The rear wheels use 5/8" keyed sprocket hubs. Outer portions of the wheels are 24" id HDPE pipe. Bicycle tires are used for the wheel tread.

Boxer
BigDog
DogSled
Pup
Nahji

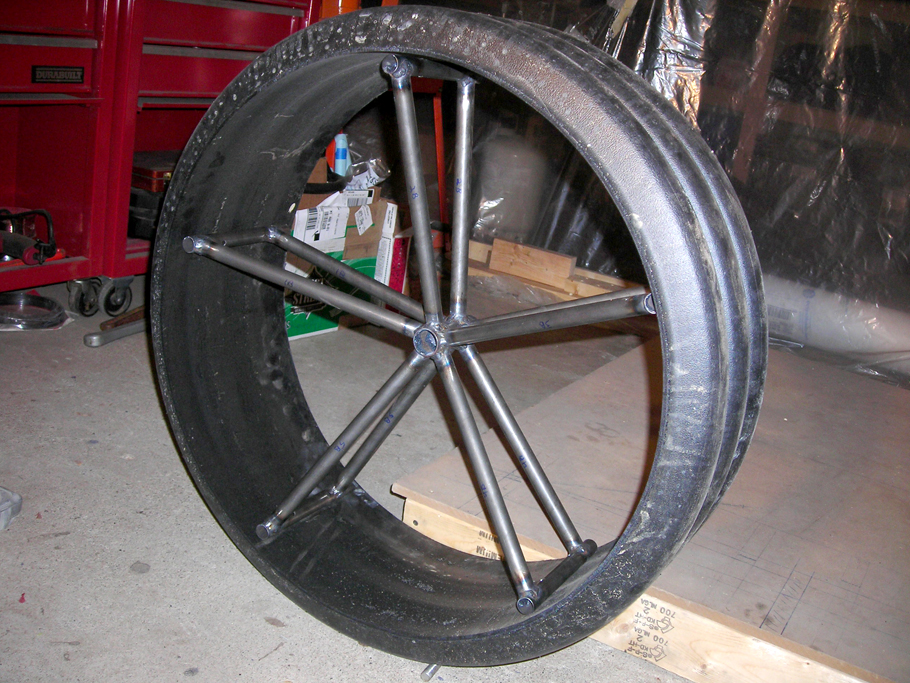

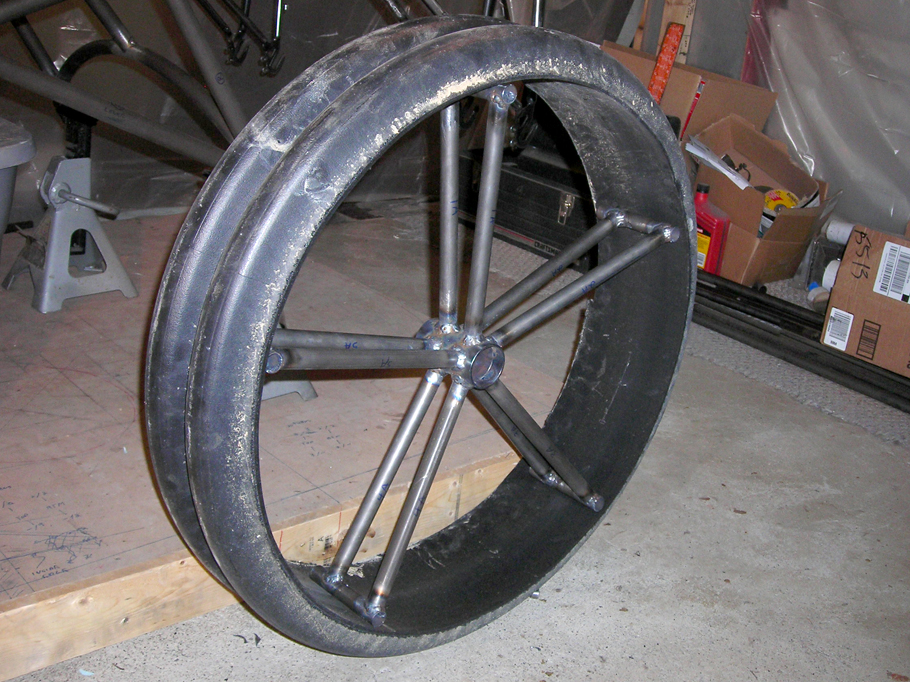

  Bare Metal Wheel Centers Mounted to HDPE Pipe - April 3, 2011

Bare Metal Wheel Centers Mounted to HDPE Pipe - April 3, 2011


  January 21, 2011

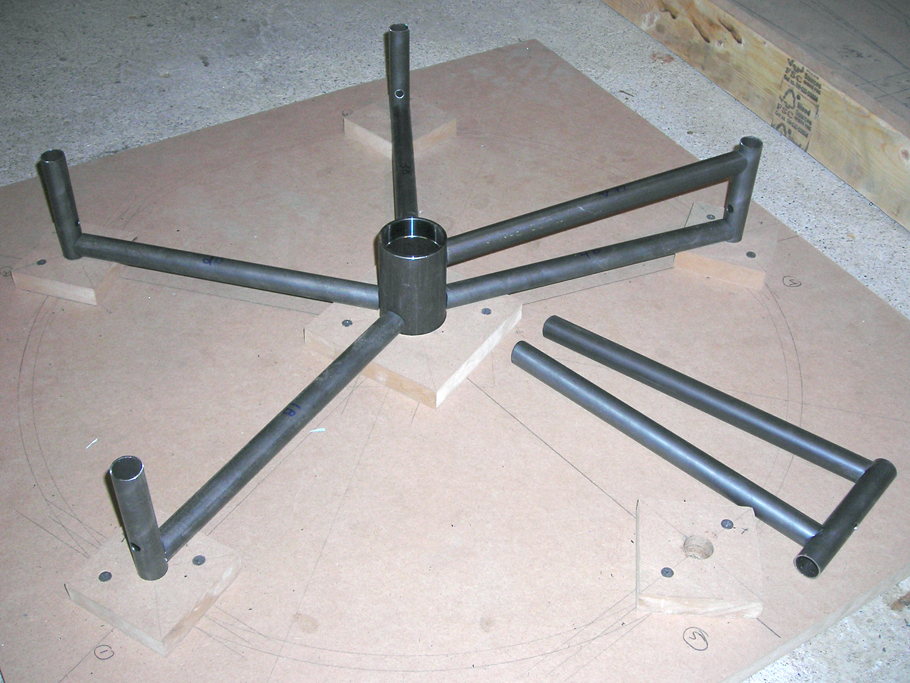

  Front Wheel Center Fixture

  January 21, 2011

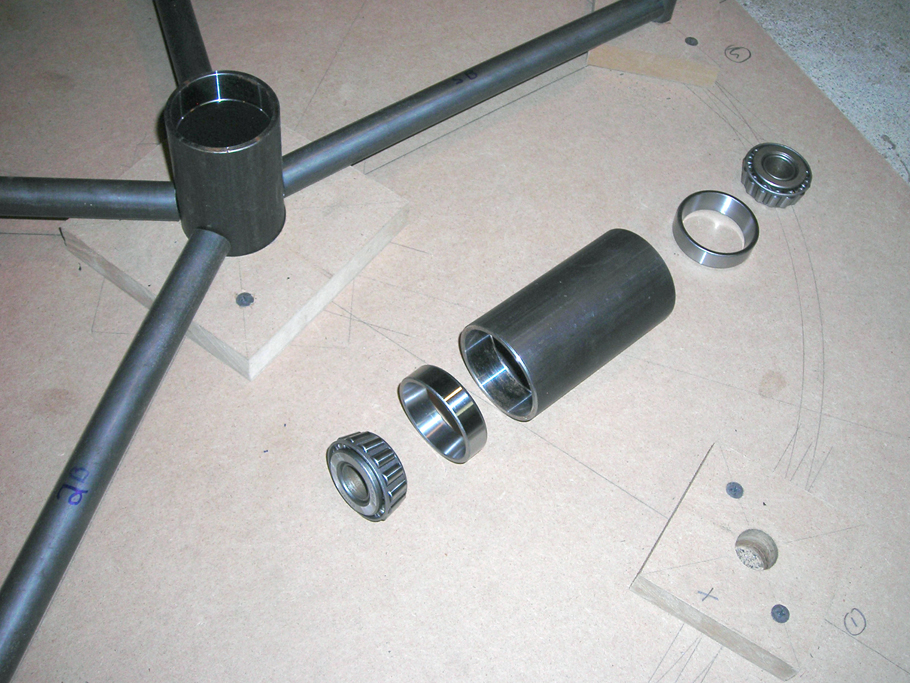

  Front Wheel Hub Detail

  January 21, 2011

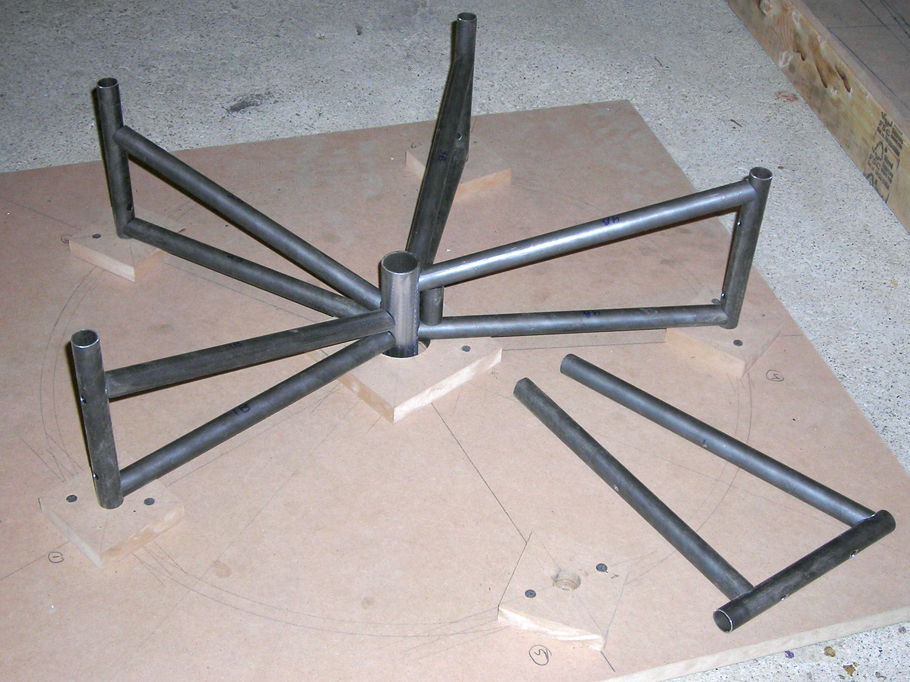

  Rear Wheel Center Fixture

  January 21, 2011
  Rear Wheel Hub Detail

  February 6, 2011

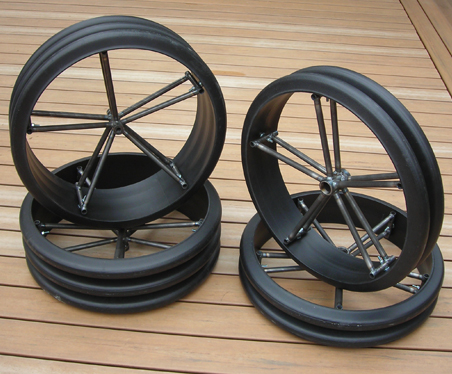

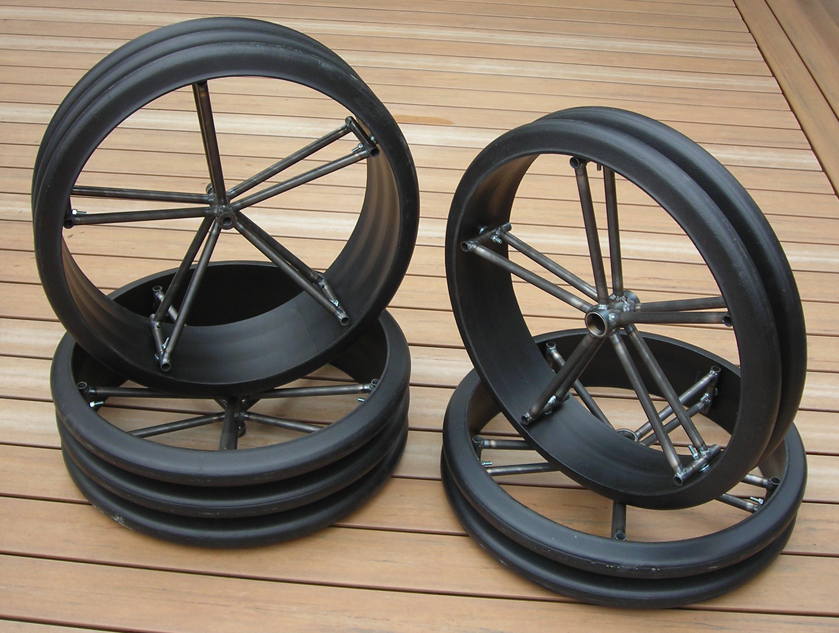

  Front Wheel & HDPE Pipe

  February 6, 2011
  Rear Wheel & HDPE Pipe

  March 2, 2013

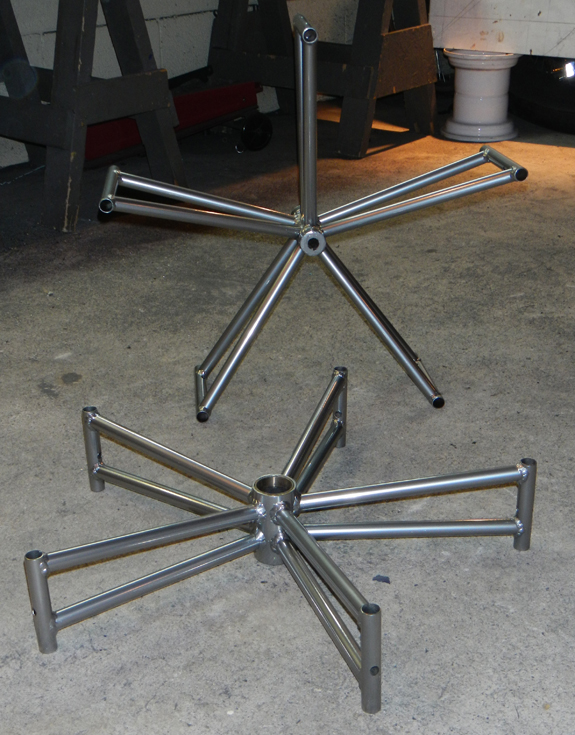

  "Chrome" Powder-Coated Wheel Centers
      Wheels powder-coated at the Detroit TechShop

  April 16, 2013

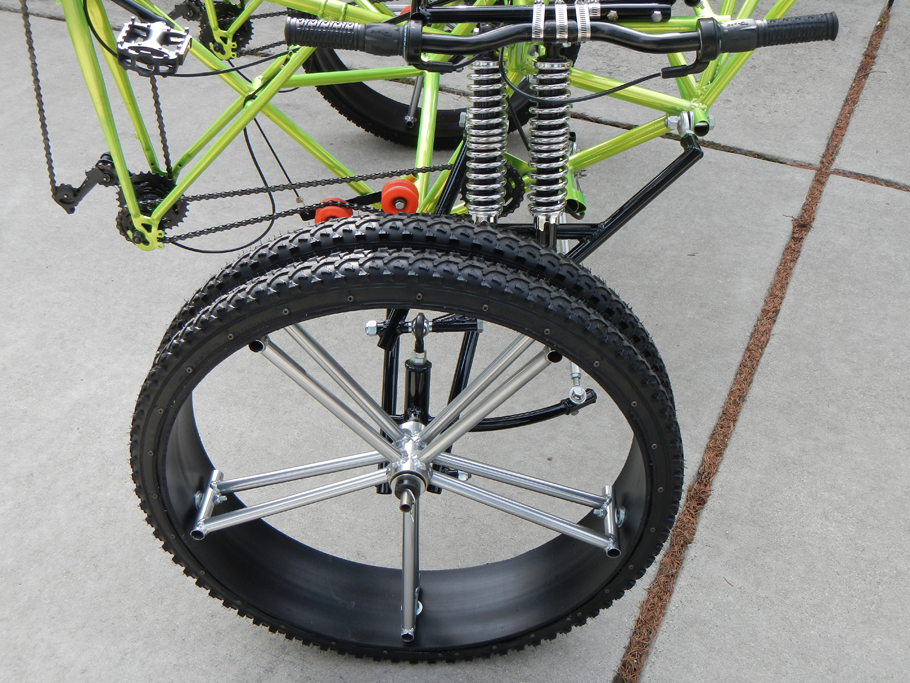

  Finished Front Wheel

  April 16, 2013

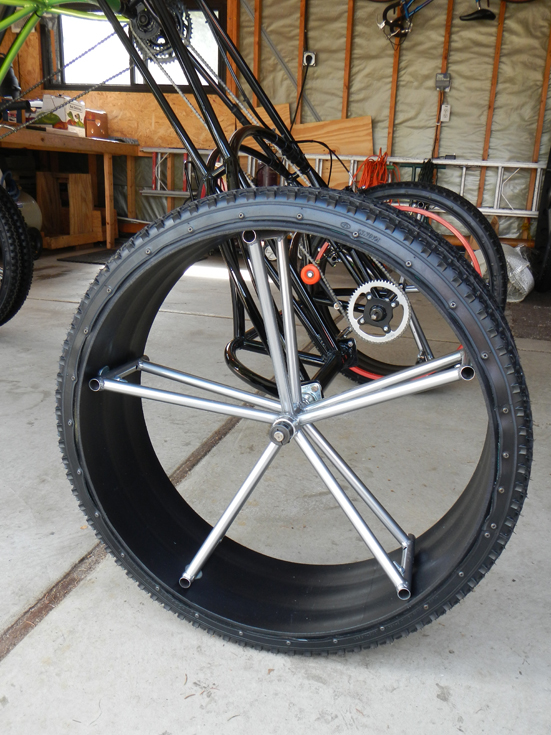

  Finished Rear Wheel
