January 2011
  Boxer Flame Effect Study

Boxer Flame Effect Study

As with the BigDog, design exploration and the final design process utilized software to create digital 3D models and dimensioned line drawings. Cross sections and details were developed as required. Steering geometry studies were also created to determine suspension pivot points and spindle design.

Questions contact:
tom.wilson@thirstybeachlandscaping.com

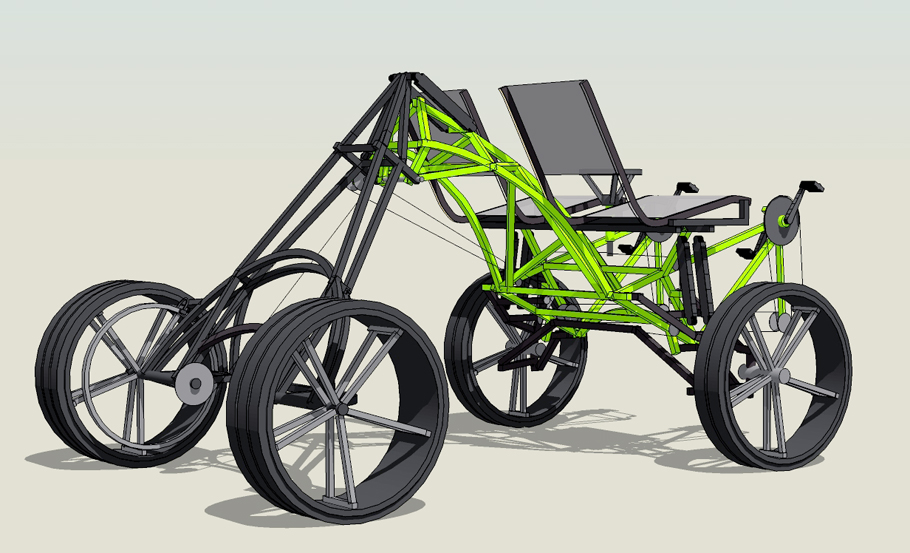

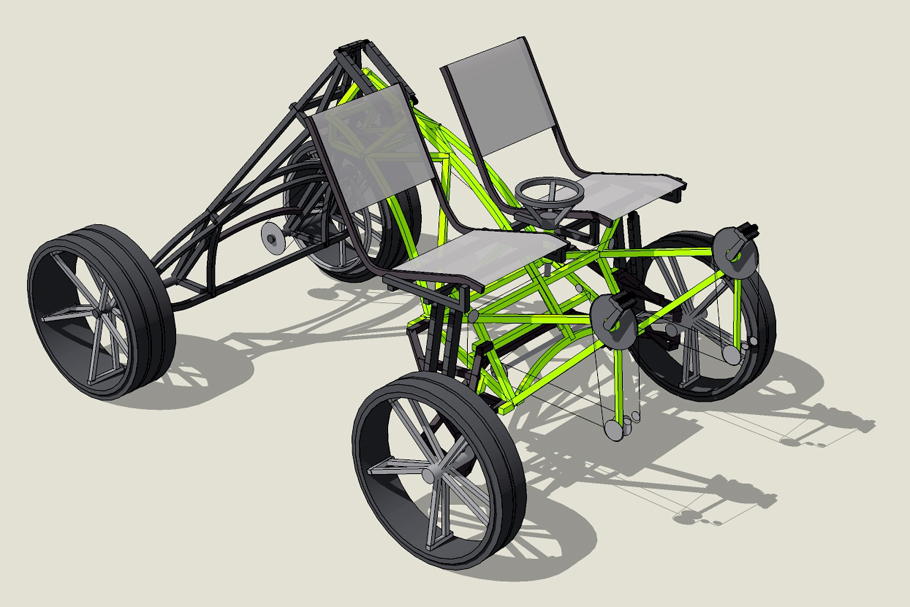

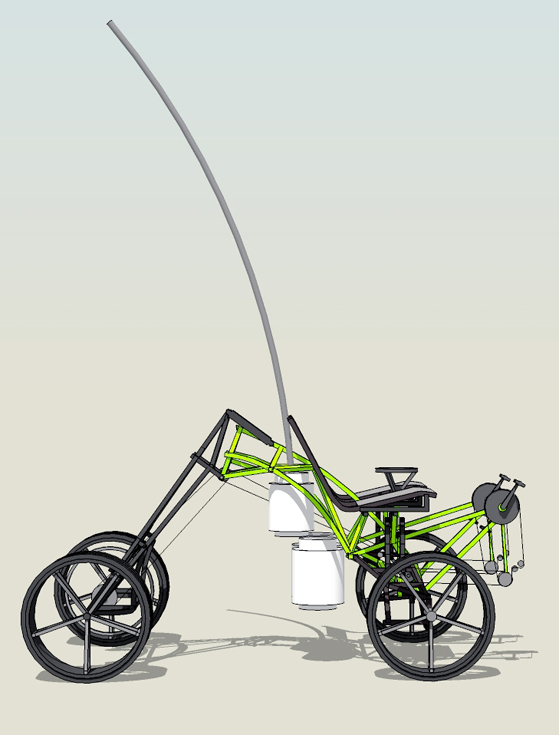

  3D Rendering - January 2011

3D Rendering - January 2011

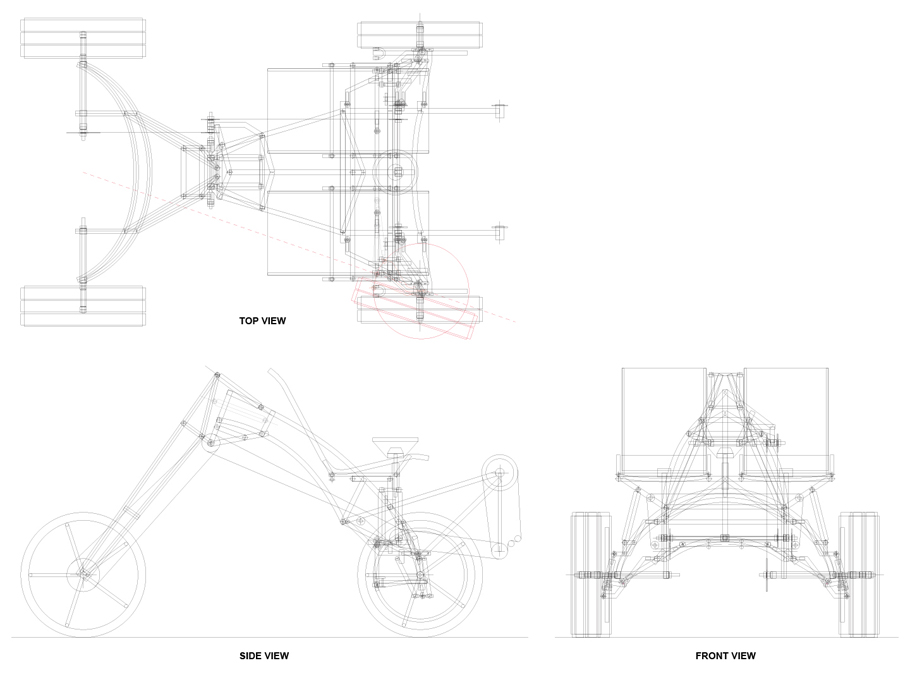

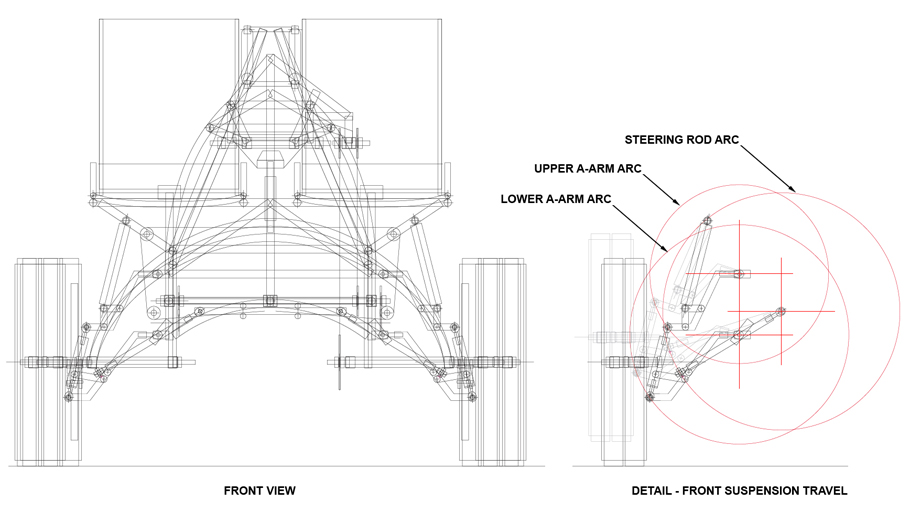

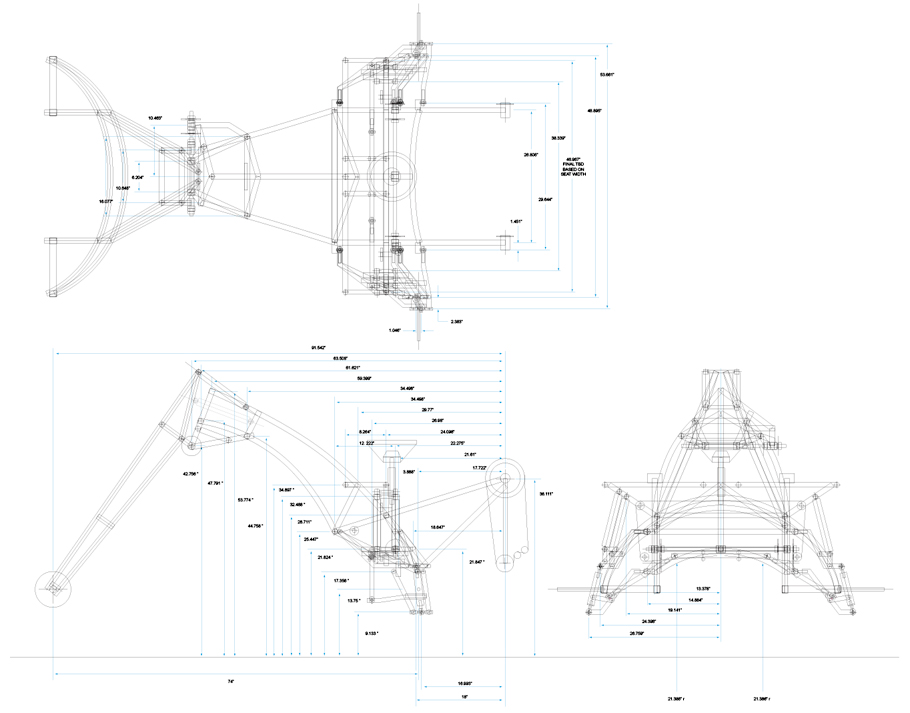

January 2011   Front, Side & Top View Drawings   View High Resolution PDF	January 2011   Front Suspension Study   View High Resolution PDF	January 2011   Dimensioned Frame Drawing   View High Resolution PDF

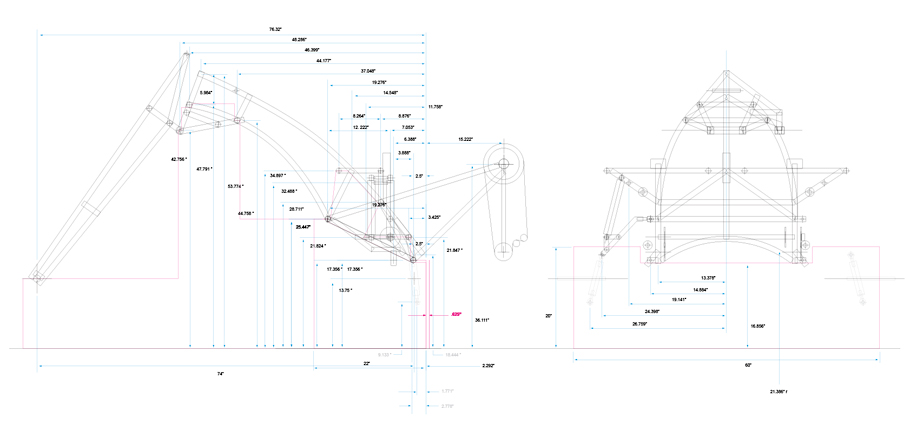

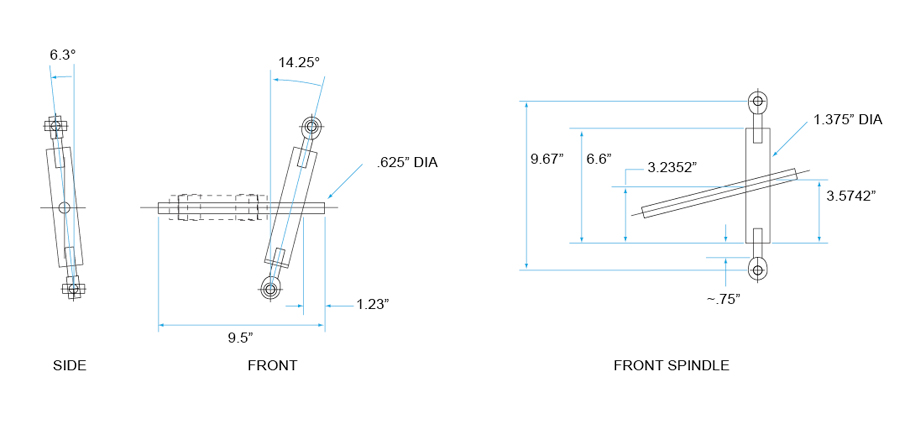

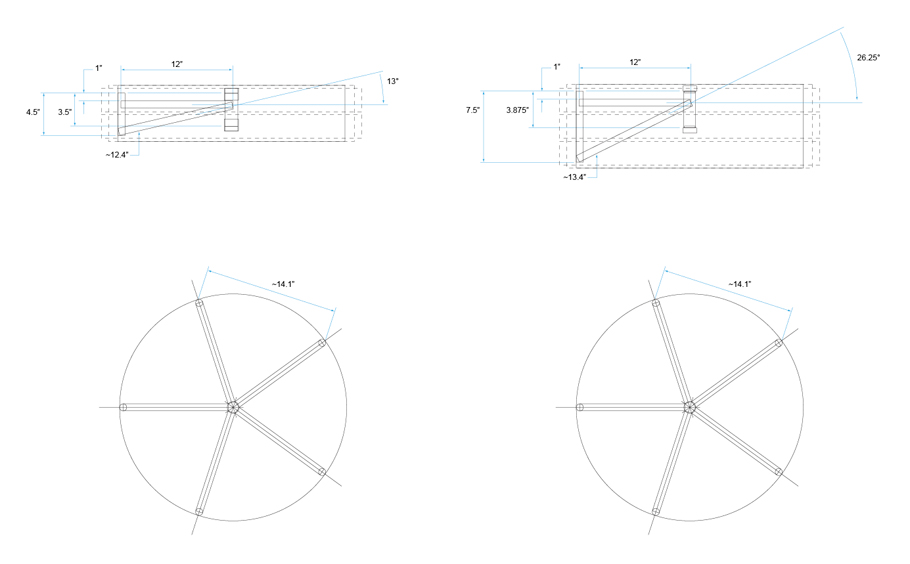

January 2011   Dimensioned Fixture Drawing   View High Resolution PDF	January 2011   Dimensioned Spindle Drawing   View High Resolution PDF	January 2011   Dimensioned Wheel Drawings   View High Resolution PDF

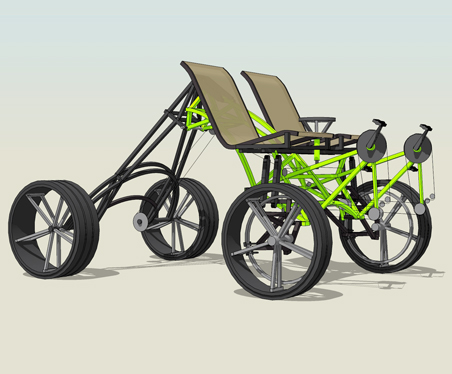

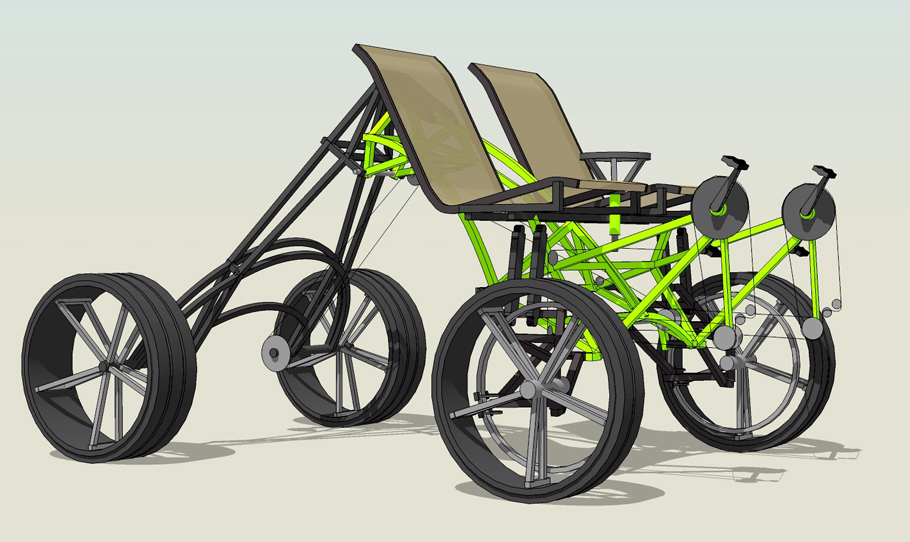

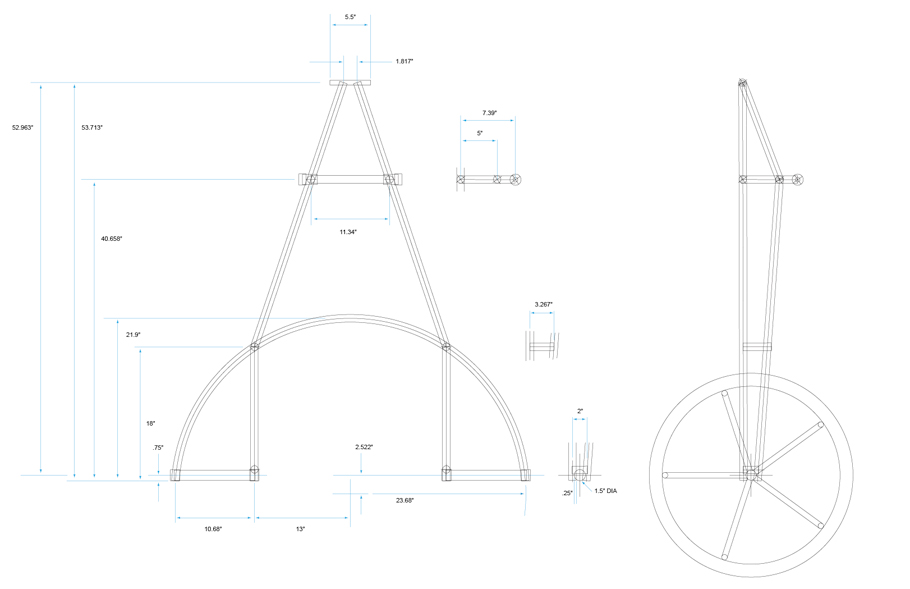

January 2011   Dimensioned Rear Axle Drawing   View High Resolution PDF	January 2011   3D Rendering - Revised Seats and Braking	January 2011   3D Rendering - Revised Seats and Braking

Click to View Larger Image & Details
