  August 2009

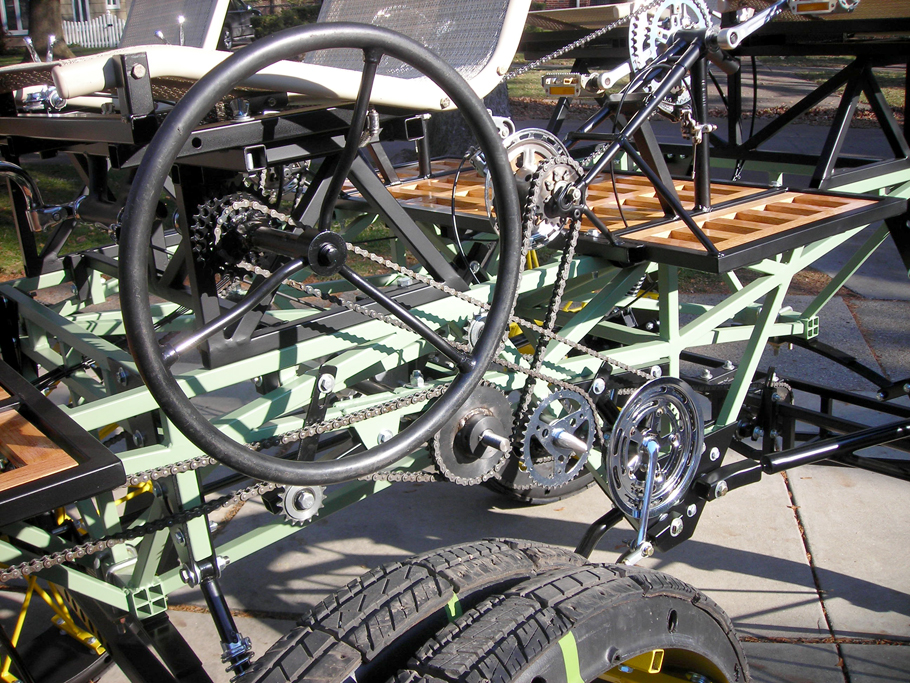

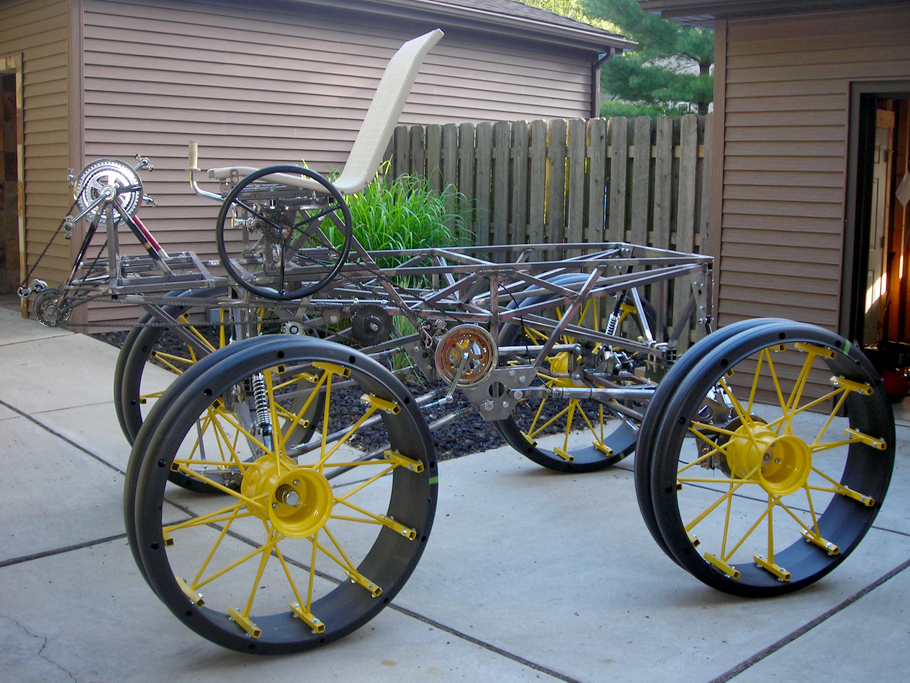

  Steering Left Side Top View

Steering Left Side Top View
August 2009

The steering wheel is mounted vertically and attaches to a bike headset under the left seat. Sprockets link by chain to a bicycle crank. One pedal from the crank is used as a pitman arm and connects to the left spindle. A second crankset is used as a tensioner. Left and right spindles link to each other by a front mounted tie rod.

Boxer
BigDog
DogSled
Pup
Nahji

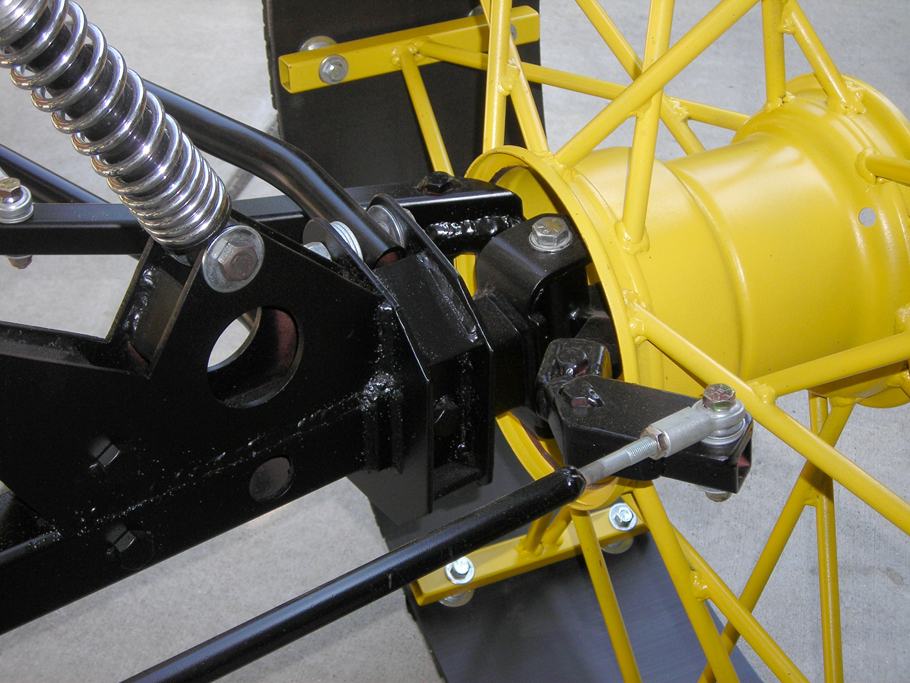

  Steering Detail

Steering Detail


  June 2008
  Steering Travel - Full Left

  June 2008
  Steering Travel - Full Right

  June 2008

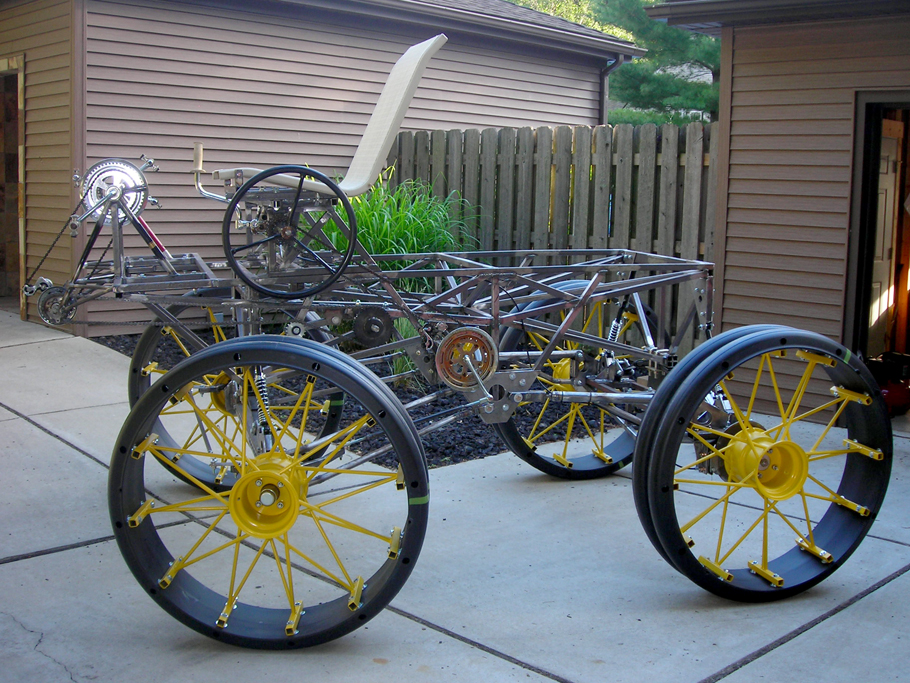

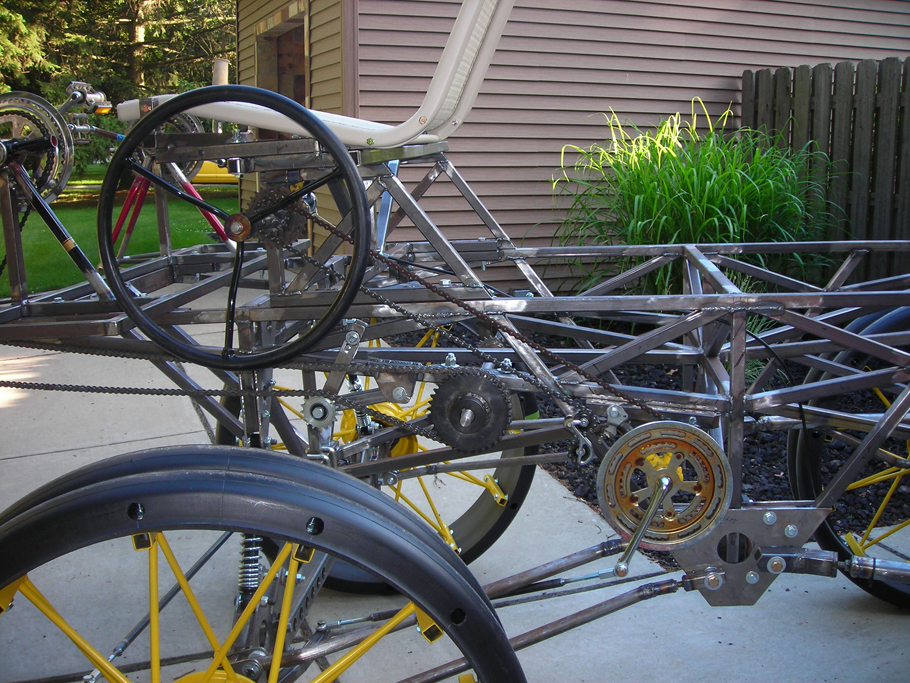

  First Design Steering with Derailleur Tensioner

  June 2008

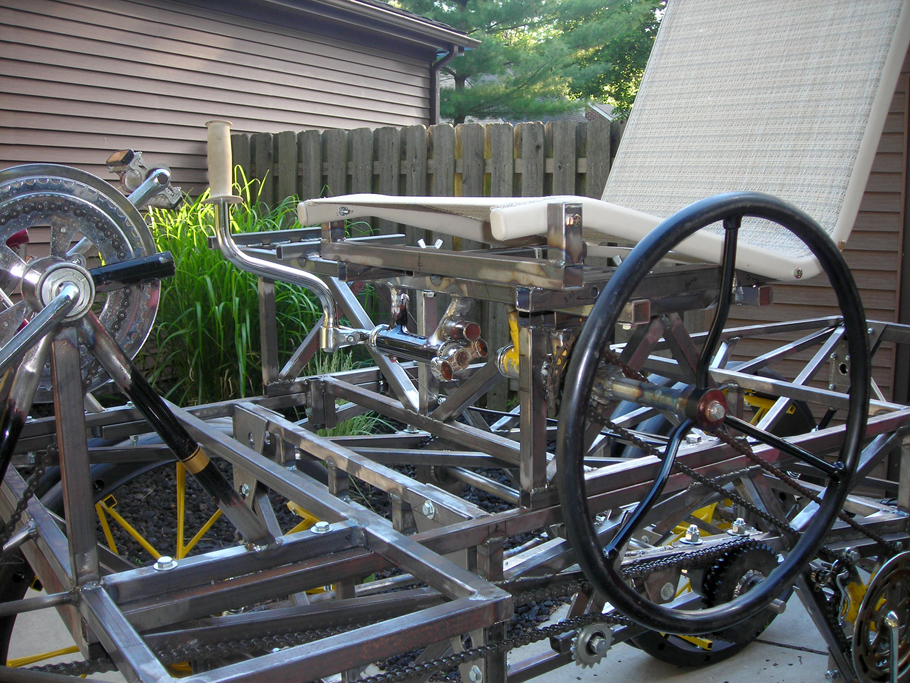

  Headset Steering Wheel Mounting Detail

  June 2008

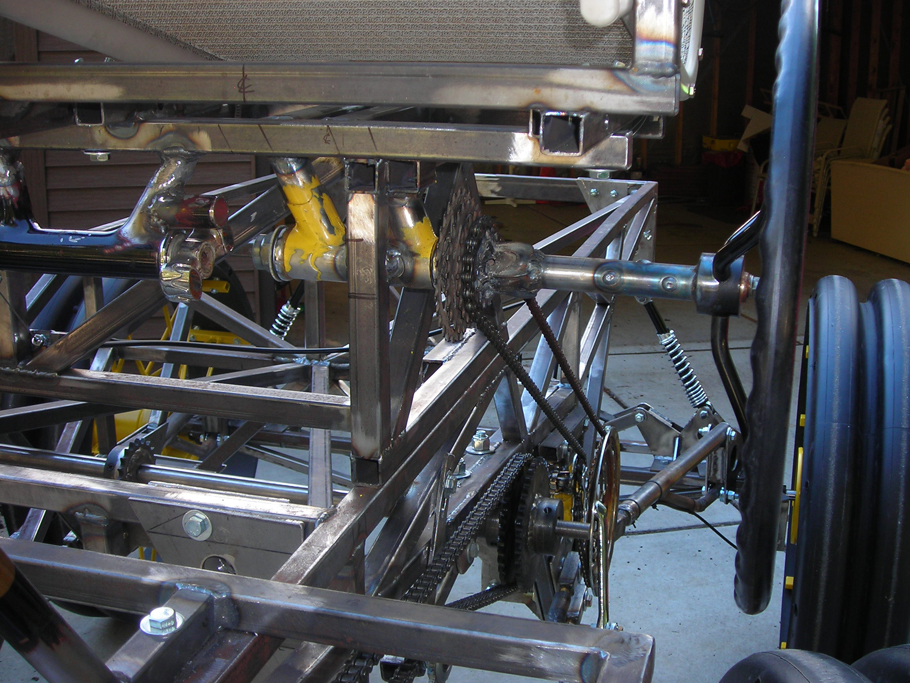

  Steering Wheel Mounting Detail

  June 2008

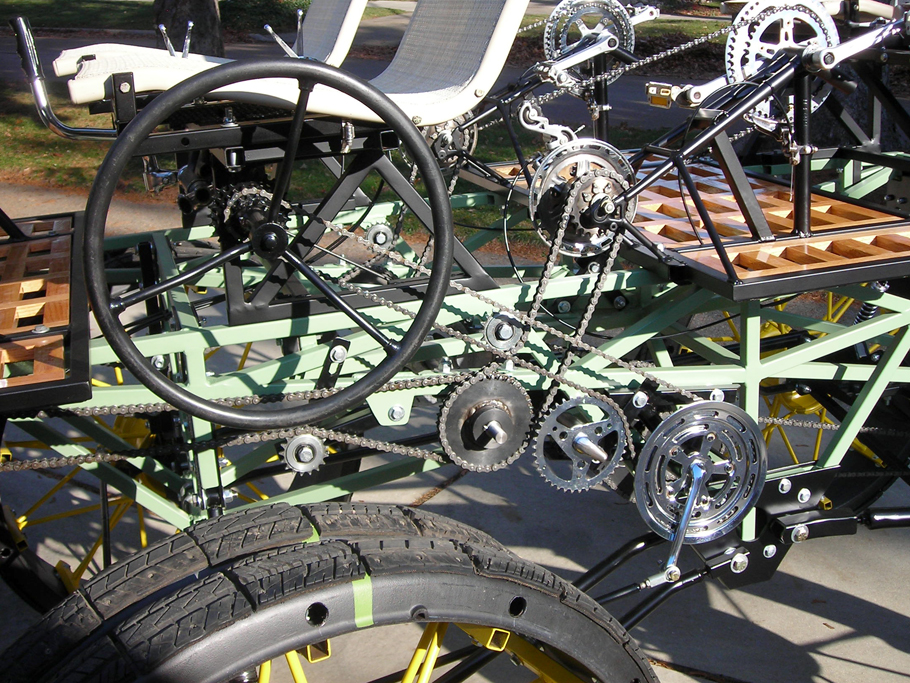

  Second Design Steering with Crankset Tensioner

  November 2008
  Second Design Steering with Crankset Tensioner

  November 2008

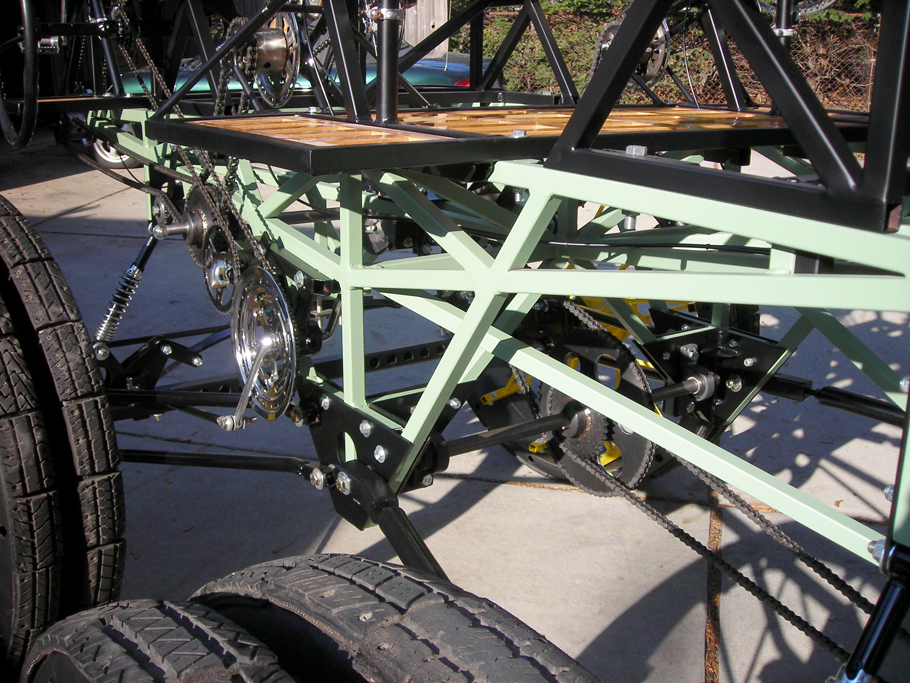

  Steering Detail

  November 2008
  Second Design Steering with Crankset Tensioner
